L&T Starter Types, Price List 2021 For Three phase motors

L&T Starter Price List 2020 For Three-phase motors:

L&T Starter is a very compact model dol and star-delta starter used for the starting of the three-phase motor such as agriculture submersible pump, dewatering pump, three-phase grinder motor etc. The price of the l&t starter varies by the capacity of the motor and in l&t we can get a starter up to 35HP Motor.

In this article, you are going to reveal the latest l&t starter price list of 2020 etc.

Starter Price list for the year of 2020:

Each Larsen and Turbo releases the latest price on the 1st day of every year. Like that, follow the latest price of the DOL, SASD, and FASD starter.

DOL => Direct Online Starter. For Below 10 HP motors we can use DOL starter

SASD => Semi-automated Star Delta Starter. It means, manual star and delta change over. It does not come with the timer. Since timer cost can be eliminated.

Learn More:   MCCB (Moulded Case Circuit Breaker) Working, Types, Rating

FASD => Full Automated Star Delta starter.

There are three basic model starter is being sold by the l&t and they are MK1, MU and MB Starters.

l&t DOL Starter Wiring Diagram:

l&t Starter Wiring Diagram
l&t Starter Wiring Diagram

Terminal 94 and 95 work as the starting button and terminal 95 and 96 work as stoping or reset button.

Price List for MK1 0.25 HP, 0.5 HP, 1 HP, 2 HP, 4 HP, 6 HP, 7.5 HP:

MK1 DOL stater
MK1 DOL stater

MK1 starters are the simple wired starter suitable for indoor application where the ambient temperature is less.



Suitable for Pump/ Motor

3Ø, 415V,

50Hz



Relay Range (A)

Cat. No.

Std. Pkg. (Nos.)



M.R.P.

(`)

Per Unit

Coil Voltage 360V-W (200V – 400V)

Coil Voltage 360V



Coil Voltage 400/440V

0.25 HP 0.6 – 1 SS96210POKO 1 1950
0.5 HP 1 – 1.6 SS96210COMO SS96210POMO 1 1950
1 HP 1.5 – 2.5 SS96210COPO SS96210POPO 1 1950
2 HP 2.5 – 4 SS96210CORO SS96210PORO 1 1950
4 HP 4 – 6.5 SS96210SOTO SS96210COTO SS96210POTO 1 1950
6 HP 6 – 10 SS96210SOVO SS96210COVO SS96210POVO 1 1950
7.5 HP 9 – 14 SS96210SOAO SS96210COAO SS96210POAO 1 1950
7.5 HP 11 – 18 SS96211SOCO SS96211COCO SS96211POCO 1 2000
7.5 HP 13 – 22 SS96228SODO SS96228CODO SS96228PODO 1 2050



MK1 SASD Starters – Upto 15 HP Motor

MK1 SASD Starter
MK1 SASD Starter
Suitable for Pump/ Motor

3Ø, 415V,

50Hz



Relay Range (A)

Cat. No.

Std. Pkg. (Nos.)



M.R.P.

(`)

Per Unit



Coil Voltage 360V



Coil Voltage 440V

6 HP 4 – 6.5 SS96255COTO SS96255POTO 1 6295
10 HP 6 – 10 SS96255COVO SS96255POVO 1 6295
12.5 / 15 HP 9 – 14 SS96255COAO SS96255POAO 1 6295
15 HP 11 – 18 SS96258COCO SS96258POCO 1 6345
15 HP 13 – 22 SS96260CODO SS96260PODO 1 6425



MK1 FASD Starters – Upto 15 HP Motors:

MK1 FASD Starter
MK1 FASD Starter
Suitable for Pump/ Motor

3Ø, 415V

50Hz



Relay Range (A)

Cat. No.

Std. Pkg. (Nos.)



M.R.P.

(`)

Per Unit



Coil Voltage 360V



Coil Voltage 440V

6 HP 4 – 6.5 SS96254COTO SS96254POTO 1 7020
10 HP 6 – 10 SS96254COVO SS96254POVO 1 7020
12.5 / 15 HP 9 – 14 SS96254COAO SS96254POAO 1 7020
15 HP 11 – 18 SS96257COCO SS96257POCO 1 7070
15 HP 13 – 22 SS96259CODO SS96259PODO 1 7115



MK2 DOL Starters:

MK2 Starter
MK2 Starter

MK2 starter is interconnected with the small bars. Hence the cost of the MK2 model DOL starter is high and meanwhile, the life expectancy of this starter is high. They are mainly preferable the place where the ambient temperature is high. In high ambient temperature, the cable slew may lose the insulation property. To avoid this, MK2 starters are used.

There are mainly used in agriculture submersible pumps. Example agriculture land. Generally, people do not have a provision to reduce the room temperature. In case, in summer season, the ambient temperature will be high and the groundwater will be low; therefore, we need to run the motor for a long time, so the cable will get high temperature. In such a place MK2 are preferred.

MK2 Starter price List:

Suitable for Pump/ Motor

3Ø, 415V,

50Hz



Relay Range (A)

Cat. No.

Std. Pkg. (Nos.)



M.R.P.

(`)

Per Unit

Coil Voltage 360V-W (200V – 400V)

Coil Voltage 360V



Coil Voltage 400/440V

7.5 HP 13 – 22 CS90947SODO CS90947CODO CS90947PODO 1 2220
7.5 HP 20 – 32 CS90947SOEO CS90947COEO CS90947POEO 1 2220



MU – Automatic DOL Starters:

L&T Starter Types, Price List 2021 For Three phase motors

MU DOL starters are mainly focused on the open submersible pump for the above 7.5HP motors. Also, they are coming along with the single-phase preventer. Single-phase preventer is used to protect the motor from, unbalance fault.

Almost 75% of motor failure happens due to single phasing. Single phasing mainly occurs due to one of the phase fuse failure, open phase cable, one winding got cut, loose contact etc.





Starter Type

Suitable for Pump/ Motor

3Ø, 415V,

50Hz



Relay Range (A)

Cat. No.

Std. Pkg. (Nos.)



M.R.P.

(`)

Per Unit



Coil Voltage 360V



Coil Voltage 415V



MU-1A DOL

(with Sz5 SPPR)

7.5 HP 9 – 14 CS90898COAO CS90898DOAO 1 4510
10 HP 13 – 21 CS90898COCO CS90898DOCO 1 4590
10 HP 15 – 25 CS90898CODO CS90898DODO 1 4685
MU-1HA DOL

(with Sz5 SPPR)

10 HP 15 – 25 CS90899CODO CS90899DODO 1 4800
12.5 HP 20 – 32 CS90899COEO CS90899DOEO 1 4935


MU-2A DOL

(with Sz5 SPPR)

12.5 HP 13 – 21 CS90900COCO CS90900DOCO 1 5400
15 HP 20 – 32 CS90900COEO CS90900DOEO 1 5620
15 HP 24 – 38 CS90900COGO CS90900DOGO 1 5715
MU-3A DOL

(with Sz5 SPPR)

15 HP 24 – 38 CS90901COGO CS90901DOGO 1 5935
17.5 HP 28 – 42 CS90901COFO CS90901DOFO 1 6080



MU / MB DOL Starters from 7.5 HP to 15 HP:

L&T Starter Types, Price List 2021 For Three phase motors

Here MU indicate the model Which means each model has it is own feature. Contactor rating is equal to starter rating. MU model starter can be used from 7.5HP motor to 15 HP motor. While converting kW, we can use it from 5.5KW to 11kW motors. It is nothing the relay can be connected with the lugged cables only.

Suitable for Cat. No.
Pump/ Relay Std. M.R.P.
Starter Type Motor 3Ø, 415V,

50Hz

Range

(A)

Coil Voltage 360V Coil Voltage 415V Pkg.

(Nos.)

(`)

Per Unit



MU1 DOL

(with MU relay)

7.5 HP 9 – 14 SS95647COAO SS95647DOAO 10 3160
10 HP 13 – 21 SS95647COCO SS95647DOCO 10 3275
10 HP 15 – 25 SS95647CODO SS95647DODO 10 3350
MU1H DOL

(with MU relay)

10 HP 15 – 25 CS90622CODO CS90622DODO 10 3480
12.5 HP 20 – 32 CS90622COEO CS90622DOEO 10 3660


MU2 DOL

(with MU relay)

12.5 HP 13 – 21 SS95648COCO SS95648DOCO 10 4065
15 HP 20 – 32 SS95648COEO SS95648DOEO 10 4345
15 HP 24 – 38 SS95648COGO SS95648DOGO 10 4450
MU3 DOL

(with MU relay)

15 HP 24 – 38 CS90613COGO CS90613DOGO 10 4645
17.5 HP 28 – 42 CS90613COFO CS90613DOFO 10 4850
MB1 DOL

(with MN relay)

7.5 HP 9 – 15 SS95649COBO SS95649DOBO 8 3425
10 HP 14 – 23 SS95649CODO SS95649DODO 8 3510
MB2 DOL

(with MN relay)

12.5 HP 14 – 23 SS95650CODO SS95650DODO 8 4505
15 HP 20 – 33 SS95650COEO SS95650DOEO 8 4715



MU / MB SASD Starters:

L&T Starter Types, Price List 2021 For Three phase motors

Medium power semi-automated star delta starter, that can be used upto 30 HP motor. The price varies from 8205 to 11350/-. In this model, MN and MU relays are used. The main difference between MN and MU relay is the mounting model and the relay adjustment dial only.

  1. MN relay directly mounting which sticks to fit with the contactor terminal, but MU relay needs to be bolted with contactor terminal. look the picture,
  2. For heavy-duty application MU relays are used and for low duty application MN relays are used.



Suitable for Cat. No.
Pump/ Relay Std. M.R.P.
Starter Type Motor 3Ø, 415V,

50Hz

Range

(A)

Coil Voltage 360V Coil Voltage 415V Pkg.

(Nos.)

(`)

Per Unit

MU1 SASD

(with MU relay)

12.5 HP 9 – 14 SS95891COAO SS95891DOAO 1 8205
15 HP 13 – 21 SS95891COCO SS95891DOCO 1 8310
MU2 SASD

(with MU relay)

20 HP 13 – 21 SS95893COCO SS95893DOCO 1 10160
30 HP 20 – 32 SS95893COEO SS95893DOEO 1 10400
MB1 SASD

(with MN relay)

12.5 HP 9 – 15 SS95895COBO SS95895DOBO 1 9655
15 HP 14 – 23 SS95895CODO SS95895DODO 1 9780
MB2 SASD

(with MN relay)

20 HP 14 – 23 SS95897CODO SS95897DODO 1 11315
30 HP 20 – 33 SS95897COEO SS95897DOEO 1 11530



MU / MB FASD Starters

MU FASD
MU FASD

In this model, the MN relay comes with the single-phase preventer.

Suitable for Cat. No.
Pump/ Relay Std. M.R.P.
Starter Type Motor 3Ø, 415V,

50Hz

Range

(A)

Coil Voltage 360V Coil Voltage 415V Pkg.

(Nos.)

(`)

Per Unit

MU1 FASD

(with MU relay)

12.5 HP 9 – 14 SS95890COAO SS95890DOAO 1 9565
15 HP 13 – 21 SS95890COCO SS95890DOCO 1 9665
MU2 FASD

(with MU relay)

20 HP 13 – 21 SS95892COCO SS95892DOCO 1 11175
30 HP 20 – 32 SS95892COEO SS95892DOEO 1 11420
MB1 FASD

(with MN relay)

12.5 HP 9 – 15 SS95894COBO SS95894DOBO 1 10230
15 HP 14 – 23 SS95894CODO SS95894DODO 1 10330
MB2 FASD

(with MN relay)

20 HP 14 – 23 SS95896CODO SS95896DODO 1 12400
30 HP 20 – 33 SS95896COEO SS95896DOEO 1 12635



ML DOL Starters [HSN Code 8536]

L&T Starter Types, Price List 2021 For Three phase motors
ML DOL View

ML DOL Starter are having different contactor coil voltage and it is available for 360 V, 380 V and 440 Volts. They are heavy duty starter. The contactor contact tip can be replaced easily. But above said model of MK1, MK2 and MU, we can not change the contact tip. Incase of failured of contactor we need to replace the entire contact. But ML mode l&t starter provision to repair or change the contact tip.

The price lists is below.L&T Starter Types, Price List 2021 For Three phase motors

ML SASD Starters:



L&T Starter Types, Price List 2021 For Three phase motors

L&T Starter Types, Price List 2021 For Three phase motors

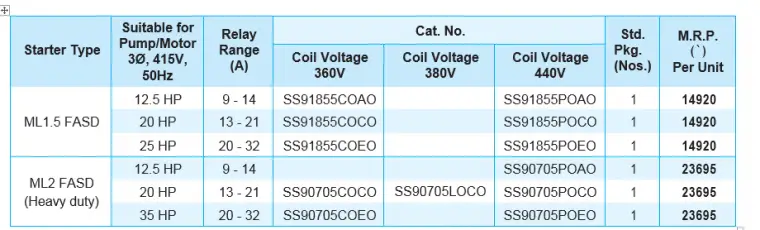

ML FASD Starters:

L&T Starter Types, Price List 2021 For Three phase motors
ML FASD Starter

L&T Starter Types, Price List 2021 For Three phase motors

These are the l&t starter price list for the year of 2020.

The above price list is available on the internet. Electrical4u.net will not guaranty the current price. Always check with the l&t official site.
