Air Conditioner (A/C) Working Principle

Air conditioner gives you much thermos comfort during summer season and which maintains our room temperature at the optimum level. They also help us to remove airborne particle and humidity in the room. In this article, we are going to discuss about the basic working principle of air conditioner.

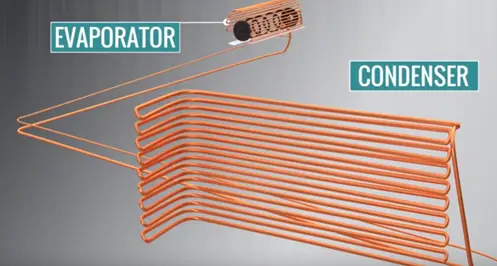

Air conditioner has two connected coils such as evaporator and condenser, refrigerant fluid, compressor, exhaust fan, connection copper tube, expansion value, Stabilizer, thermister etc.

Before understanding the working of air conditioner, just remember our full body functionality. the refrigerant is work as blood of the air conditioner and Compressor as heart, condenser as waste digestion system.

Air Conditioner (A/C) Working Principle | Why AC Unit Is TON

Working Principle of Air Conditioner:

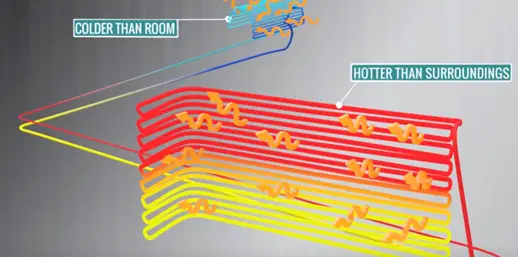

The fundamental principle of air conditioner is, just keep the evaporator in colder condition than room temperature. In such way that, condenser will be hotter than surroundings.

With this condition continuously flowing fluid (refrigerant) obliviously observed the heat from the room and ejected out to the surroundings. This is the fundamental working principle of the air conditioner.

Learn More:   What is Wheeling charges?

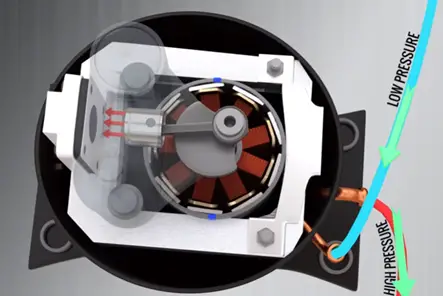

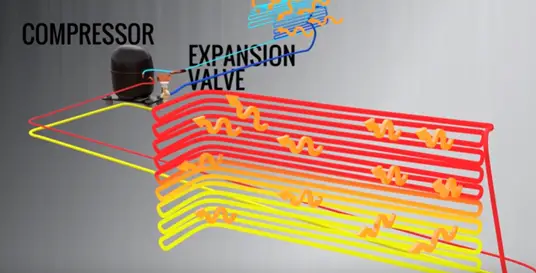

Air Conditioner (A/C) Working Principle | Why AC Unit Is TON To achieve this objective two more components required in air conditioner. They are compressor and expansion valve. Air Conditioner (A/C) Working Principle | Why AC Unit Is TONThe compressor increases the pressure of the refrigerant. In above snap, it is a reciprocating type compressor also in modern day, AC manufactures offers rotary compressor since the rotary compressor is cheaper than reciprocating compressor.

The compressor tackles the refrigerant in its gaseous state so that while compressing the gas, the temperature rises along with the pressure.

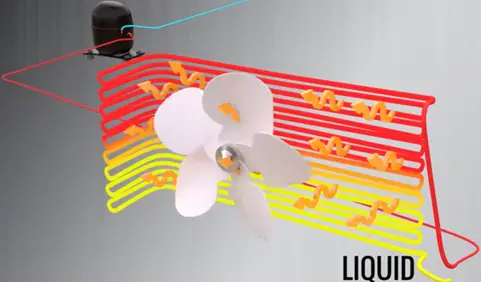

The temperature at the compressor outlet will be for higher than the atmospheric temperature. Therefore if you pass hot gas condenser heat exchange will easily eject the heat by forced cooling. Here an exhaust fan in the condenser unit makes this easier.

During this heat will be ejected by the condenser, This condensed gas will pass into a liquid expansion valve which is fitted at the exit of the condenser.

Here the net out let pressure of the condenser is lower than the net inlet pressure of the condenser.

Learn More:   Electrical MCQs App Download

Air Conditioner (A/C) Working Principle | Why AC Unit Is TON Air Conditioner (A/C) Working Principle | Why AC Unit Is TON

What is The Purpose of Expansion Valve in Air Conditioner?

The purpose of the expansion valve is used to restrict the refrigerant (R22) flow and reducing the pressure of the fluid.

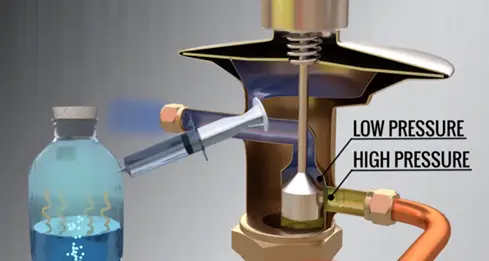

The expansion valve works, “we can boil the liquid by reducing the pressure around it”. This principle works inside of the expansion valve as the pressure drops one part of refrigerant liquid starts evaporating.

Air Conditioner (A/C) Working Principle | Why AC Unit Is TON

However to perform this evaporation, some energy to be supplied; this energy comes from the refrigerant.

So its temperature drops  and finally we gets low temperature refrigerant inside of the air conditioner. Also note, This low temperature should be lower than the added room temperature it means New Refrigerant temperature < Room temperature + Old Refrigerant temperature.

So by passing the room’s air over the evaporator coil (Indoor Unit), the room temperature will drop. The refrigerant gets converted into vapor during this heat absorption process.

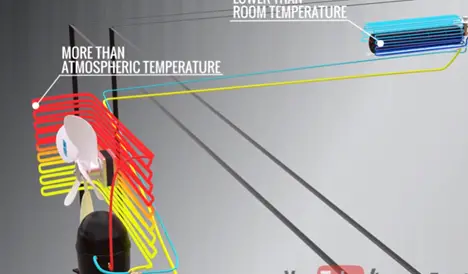

Air Conditioner (A/C) Working Principle | Why AC Unit Is TON In actual air conditioner the compressor sets near to the condenser and expansion valve sets near to the evaporator. Near the evaporator coils the air temperature will be quite low this will lead to water condensation on the evaporator coil that’s why we need a pipe to remove water condensate.

Learn More:   Why Lights At Plane Wings Are Different Color | Why Plane Leaves White Trails

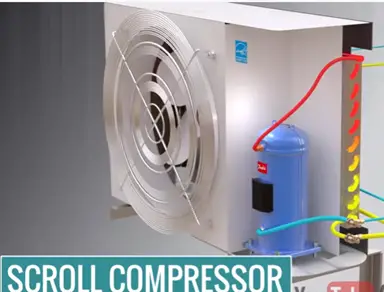

In modern compressor use scroll compressor in the reciprocating type. These compressor are silent and they have good speed control.

Air Conditioner (A/C) Working Principle | Why AC Unit Is TON How air conditioner able to maintain almost steady room temperature irrespective of load. The modern air conditioner uses variable speed control motor technology called inverter technology.

For better temperature control just by adjusting the motor speed, compressor speed, refrigerant flow rate and cooling capacity controlled accurately.

Intersecting design for air conditioner, the compressor of the air conditioner is designed to handle only vapour and small fraction of a liquid content affects its performance and damage the compressor. For these reason the evaporator control all of the liquid to vapour and even increases the temperature of the vapour by 5 to 8 degree Celsius after the conversion. This makes fluid which enters the compressor is purely vapour.

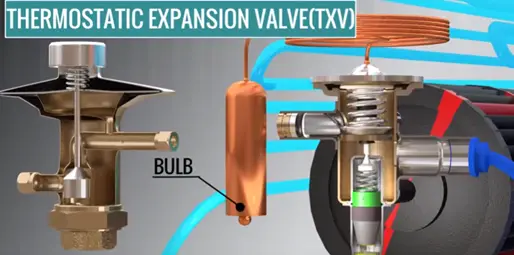

This condition is maintained by a special kind of expansion valve called thermostatic expansion valve (TXV)

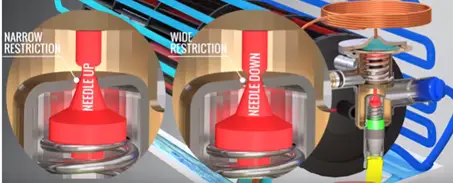

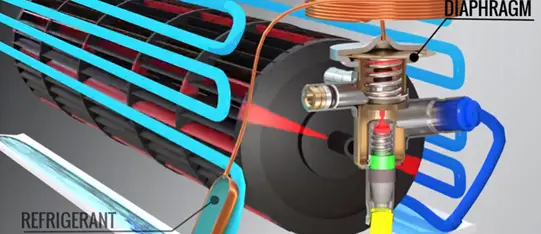

Air Conditioner (A/C) Working Principle | Why AC Unit Is TON The TXV is similar to expansion valve. The temperature of the bulb controls the heater. The bulb is connected to the evaporator exit. The refrigerant inside the bulb is separated from the main refrigerant cycle by diaphragm. Air Conditioner (A/C) Working Principle | Why AC Unit Is TON   When the bulb is hot the refrigerant inside will evaporated and the needle will move down. We know the sudden cooling of the refrigerant is achieved across the expansion valve with the help of the restriction the narrow over the restriction cooler the oil refrigerant. Air Conditioner (A/C) Working Principle | Why AC Unit Is TON Lets see bad situation of compressor Assume evaporator temperature is not so slow evaporator absorbs very low heat and all the liquid not be converted into a vapour. Then the refrigerant when leaves the compressor not be super-heated. This low temperature at evaporator exit immediately sensed by the bulb and causes the needle to move upwards to make the restrictions narrow drop.

Learn More:   Hydropower Plants | Pumped Storage Scheme Working Principle

Thus evaporator will receive much cooler fluid and absorb a great amount of heat. This will make sure that all the liquid will converted into a vapour, the complex tank of the vapour having the vapour condition is automatically maintained by TXV.

Why Air Conditioner Unit is Ton:

What is ton?

Ton is the unit which is associated with air conditioner. The ton represents how much heat evaporator can absorb from the room. In simple words represents in air conditioner heat removable capability.

1 TON= 3517 W or 12000 BTU (British Thermal Unit), 1 BTU=1,055 joules. The temperature is lower in room temperature in the coil inside the room. Then the temperature is more than atmospheric temperature in the coil outside the room.

Image/Content Credit: Learn Engineering
