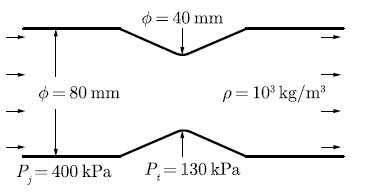

Q. 44 Water Gate ME 2015-1 Question Paper With Solutions flows through a venturimeter with inlet diameter 80 mm and throat diameter 40 mm. The inlet and throat gauge pressures are measured to
be 400 kPa and 130 kPa respectively. Assuming the venturimeter to be horizontal
and neglecting friction, the inlet velocity (in m/s) is_______.

Answer: (6)

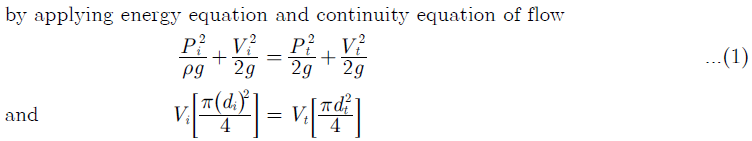

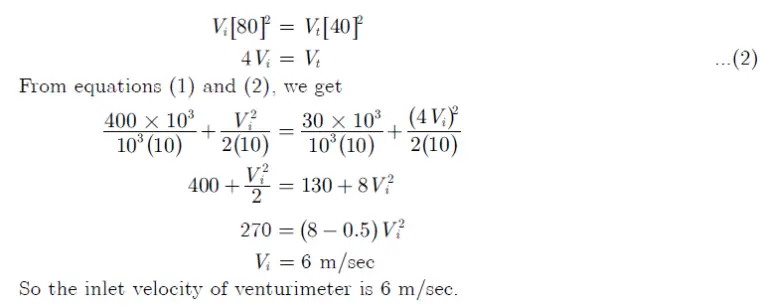

Explanation:

Gate ME 2015-1 Question Paper With Solutions

Gate ME 2015-1 Question Paper With Solutions
Gate ME 2015-1 Question Paper With Solutions

Gate ME 2015-1 Question Paper With Solutions
