Gate ME 2014-4 Question Paper With Solutions

Q. 46 A frame is subjected to a load P as shown in the figure. The frame has a constant
flexural rigidity EI . The effect of axial load is neglected. The deflection at point

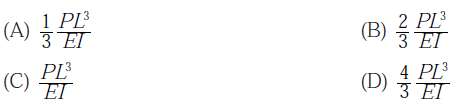

A due to the applied load P is

Answer: (D)

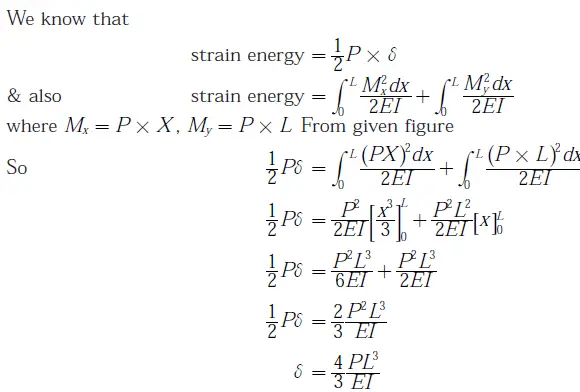

Explanation:
