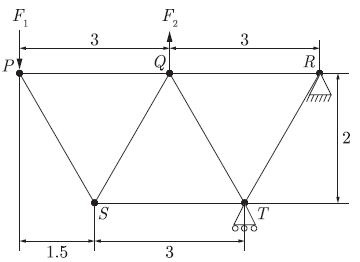

Q. 42 For the truss shown in the figure, the forces
are 9 kN and 3 kN,
respectively. The force (in kN) in the member QS is
(A) 11.25 tension
(B) 11.25 compression
(C) 13.5 tension
(D) 13.5 compression
Answer: (A)

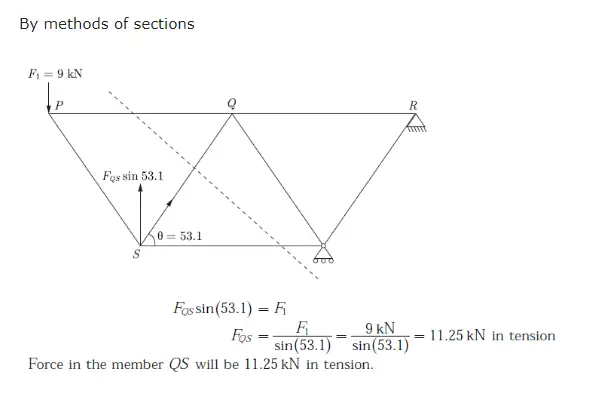

Explanation:
Q. 42 For the truss shown in the figure, the forces are 9 kN and 3 kN,
respectively. The force (in kN) in the member QS is
(A) 11.25 tension
(B) 11.25 compression
(C) 13.5 tension
(D) 13.5 compression
Answer: (A)
Explanation:
