Q. 40 A shaft is subjected to pure torsional moment. The maximum shear stress
developed in the shaft is 100 MPa. The yield and ultimate strengths of the shaft
material in tension are 300 MPa and 450 MPa, respectively. The factor of safety
using maximum distortion energy (von-Mises) theory is _____
Answer: (1.732)

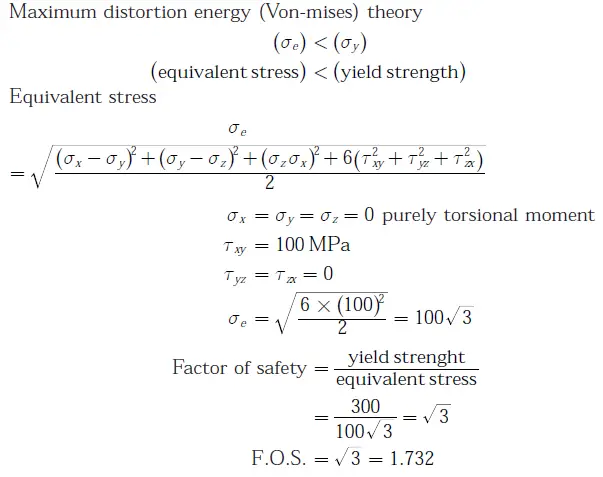

Explanation:
