Gate ME 2014-3 Question Paper With Solutions

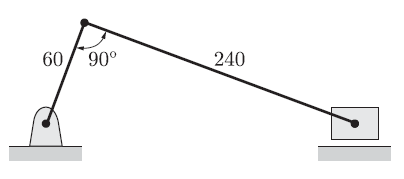

Q. 48 A slider-crank mechanism with crank radius 60 mm and connecting rod length
240 mm is shown in figure. The crank is rotating with a uniform angular speed
of 10 rad/s, counter clockwise. For the given configuration, the speed (in m/s) of
the slider is ______

Gate ME 2014-3 Question Paper With Solutions

Answer: (0.6)

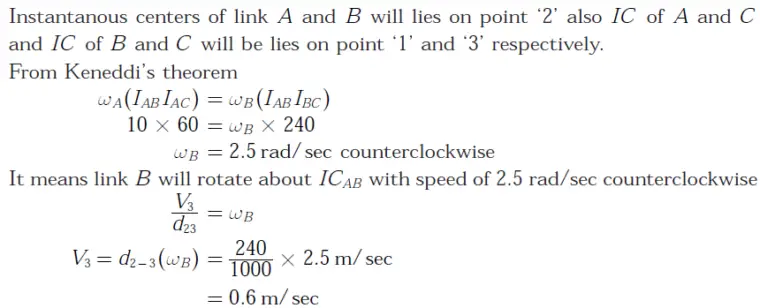

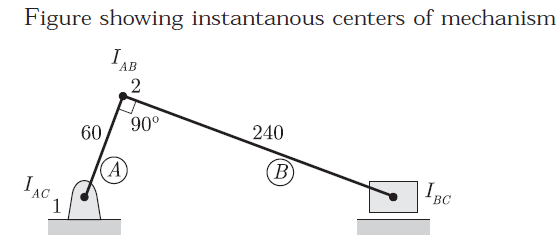

Explanation:

Gate ME 2014-3 Question Paper With Solutions

Gate ME 2014-3 Question Paper With Solutions
