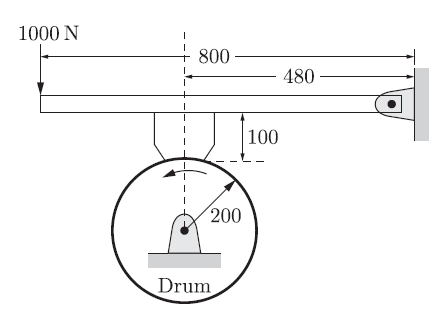

Q. 40 A drum brake is shown in the figure. The drum is rotating in anticlockwise
direction. The coefficient of friction between drum and shoe is 0.2. The dimensions
shown in the figure are in mm. The braking torque (in N.m) for the brake shoe
is _____
Answer: (64)

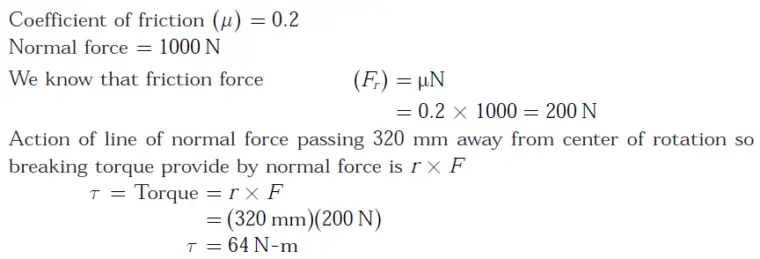

Explanation:
