Q. 50 A spur pinion of pitch diameter 50 mm rotates at 200 rad/s and transmits 3 kW
power. The pressure angle of the tooth of the pinion is
Assuming that only
one pair of the teeth is in contact, the total force (in newton) exerted by a tooth
of the pinion on the tooth on a mating gear is ______
Answer: (638.5N )

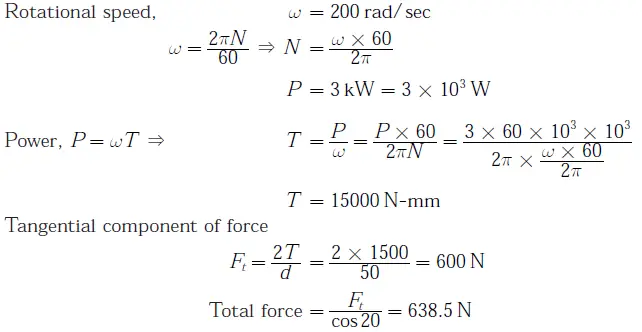

Explanation:
