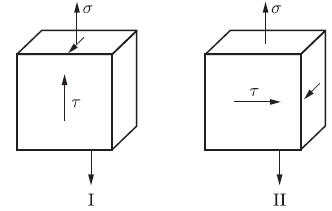

Q. 48 Consider the two states of stress as shown in configurations I and II in the figure
below. From the standpoint of distortion energy (von-Mises) criterion, which one
of the following statements is true?
(A) I yields after II
(B) II yields after I
(C) Both yield simultaneously
(D) Nothing can be said about their relative yielding
Answer: (C)
Explanation:
