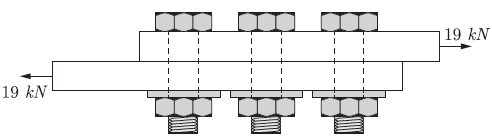

Q. 42 For the three bolt system shown in the figure, the bolt material has shear yield
strength of 200 MPa. For a factor of safety of 2, the minimum metric specification
required for the bolt is
(A) M8
(B) M10
(C) M12
(D) M16
Answer: (B)

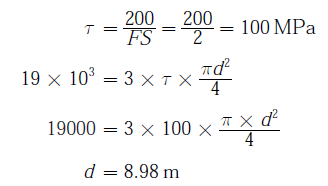

Explanation:
