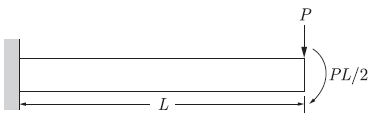

Q. 40 The flexural rigidity
of a cantilever beam is assumed to be constant over the
length of the beam shown in figure. If a load P and bending moment PL/2 are
applied at the free end of the beam then the value of the slope at the free end is

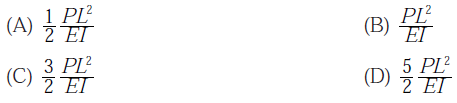

Answer: (B)

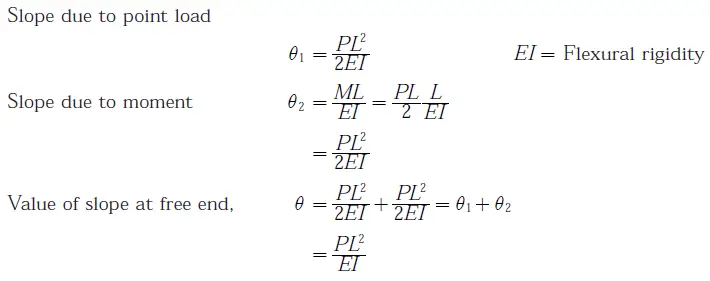

Explanation:
