Q. 30 For machining a rectangular island represented by coordinates P(0,0), Q(100,0),
R(100,50) and S(0,50) on a casting using CNC milling machine, an end mill with

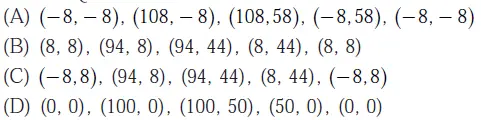

a diameter of 16 mm is used. The trajectory of the cutter centre to machine the
island PQRS is
Answer: (A)
Explanation:
Not Required.
