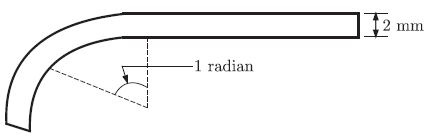

Q 66. A2 mm thick metal sheet is to be bent at an angle of one radian with a bend radius of 100 mm If the stretch factor is 0.5, the bend allowance is
(A) 99mm
(B) 100mm
(C) 101mm
(D) 102mm
Answer: (C)

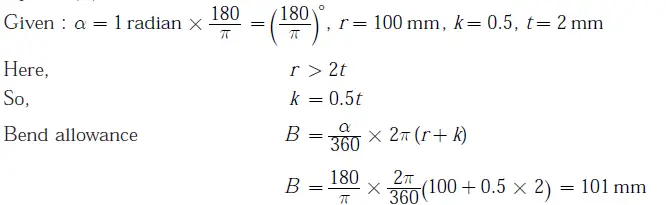

Explanation:
Q 66. A2 mm thick metal sheet is to be bent at an angle of one radian with a bend radius of 100 mm If the stretch factor is 0.5, the bend allowance is
(A) 99mm
(B) 100mm
(C) 101mm
(D) 102mm
Answer: (C)
Explanation:
