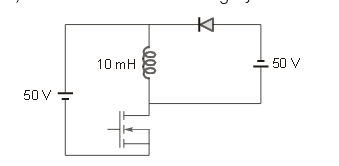

Q.52 A DC-DC converter shown below having switching frequency of 10 kHz with duty ratio0.6. All the components are ideal and initial inductor current is zero. Energy stored in
the inductor (in mJ) at the end of 10 switching cycles is
Answer: (5)

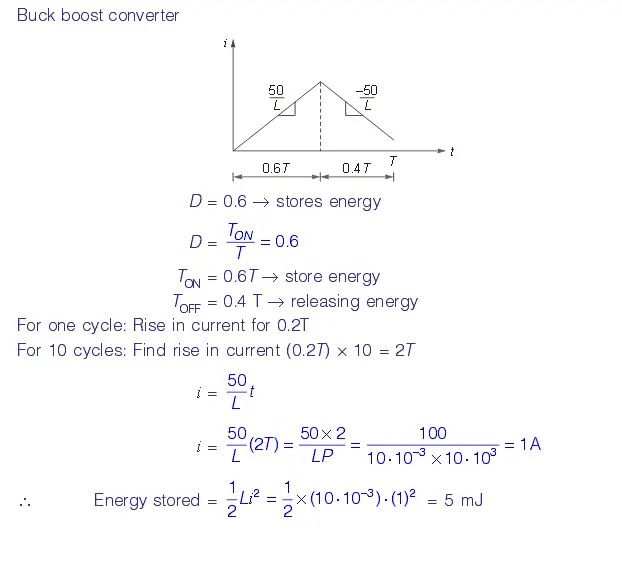

Explanation:
