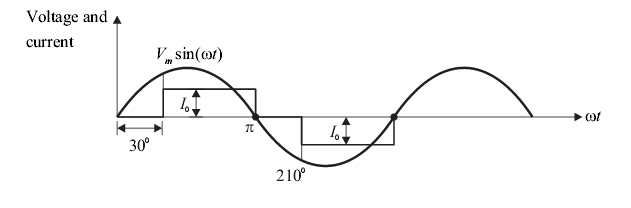

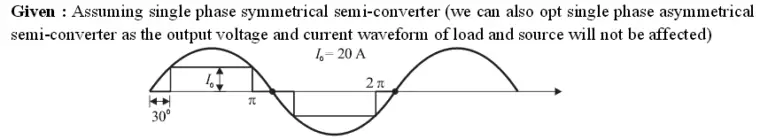

Q. 12 The waveform of the current drawn by a semi-converter from a sinusoidal AC voltage source is shown in the figure. If
A, the rms value of fundamental component of the current is ______ A (up to 2 decimal places).
Answer:(17.39)

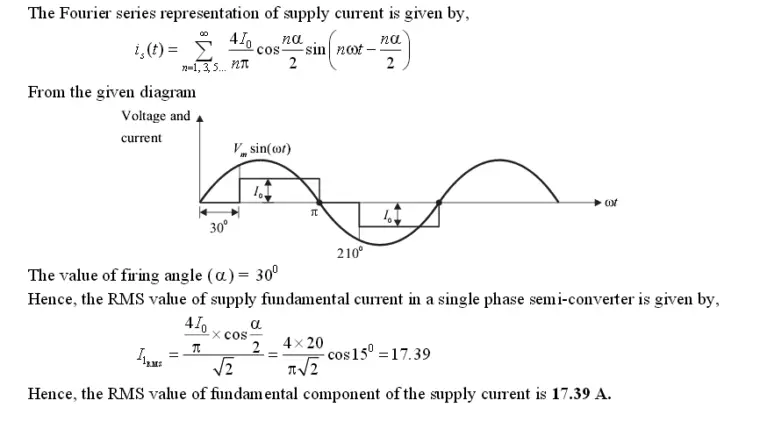

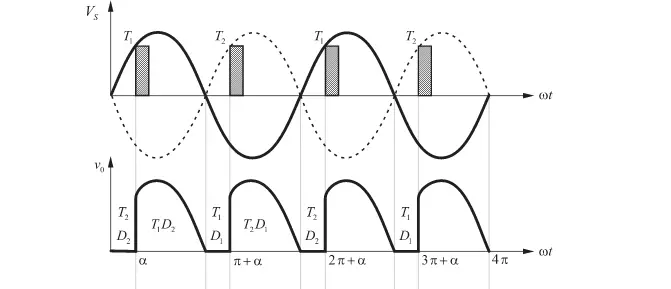

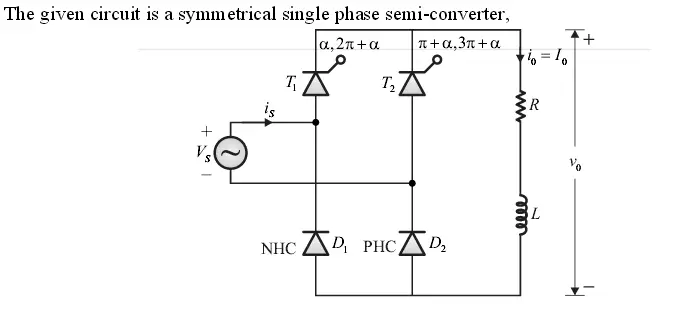

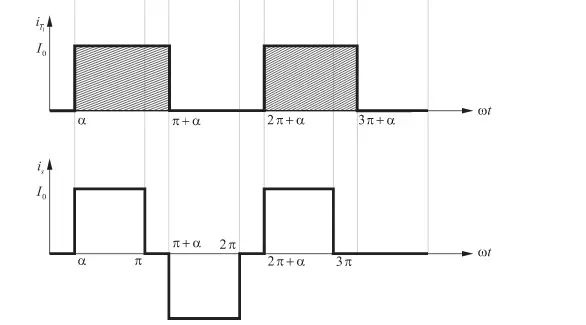

Explanation:
Q. 12 The waveform of the current drawn by a semi-converter from a sinusoidal AC voltage source is shown in the figure. If A, the rms value of fundamental component of the current is ______ A (up to 2 decimal places).
Answer:(17.39)
Explanation:
