Gate EE-2015-1 Question Paper With Solutions

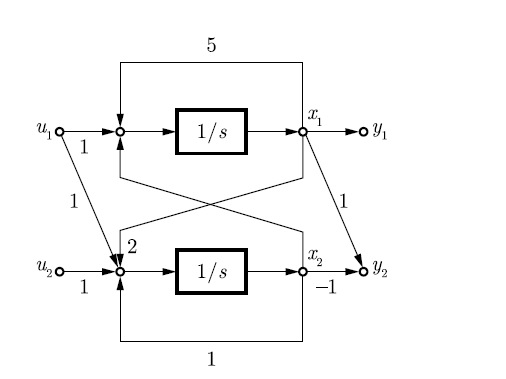

Q.41 In the signal flow diagram given in the figure,
and are possible inputs
whereas
and are possible outputs. When would the SISO system derived

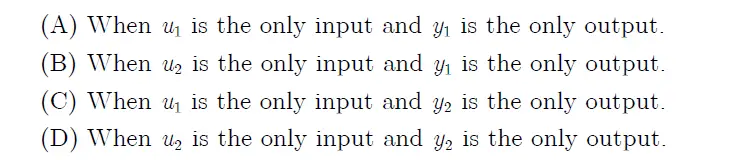

and are possible outputs. When would the SISO system derivedfrom this diagram be controllable and observable
Answer:(B)

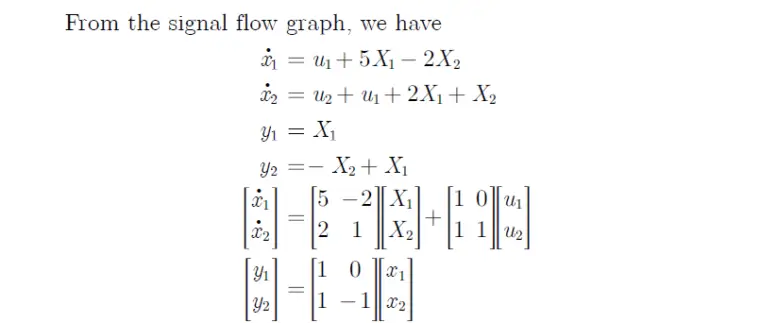

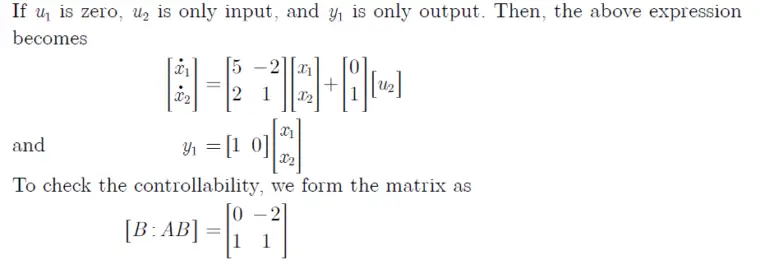

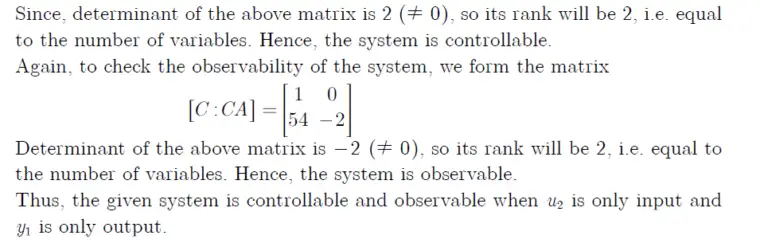

Explanation:
