Gate EE-2015-1 Question Paper With Solutions

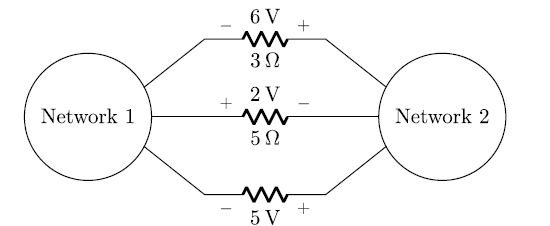

Q. 28 The voltages developed across the 3 and 2Ω resistors shown in the figure are 6V and 2 V respectively, with the polarity as marked. What is the power (in Watt)

delivered by the 5 V voltage source?

(A)5

(B) 7

(C)10

(D) 14
