Gate EE-2015-1 Question Paper With Solutions

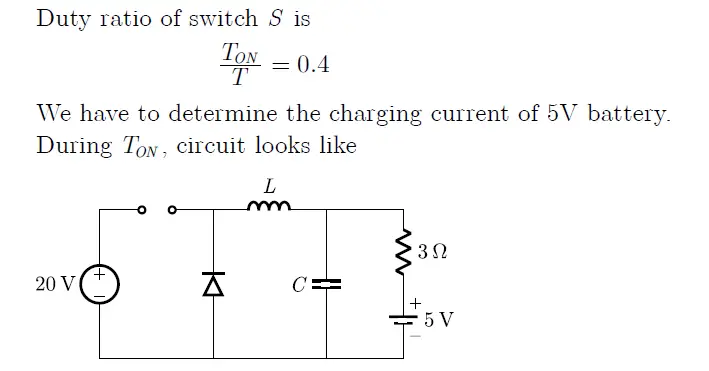

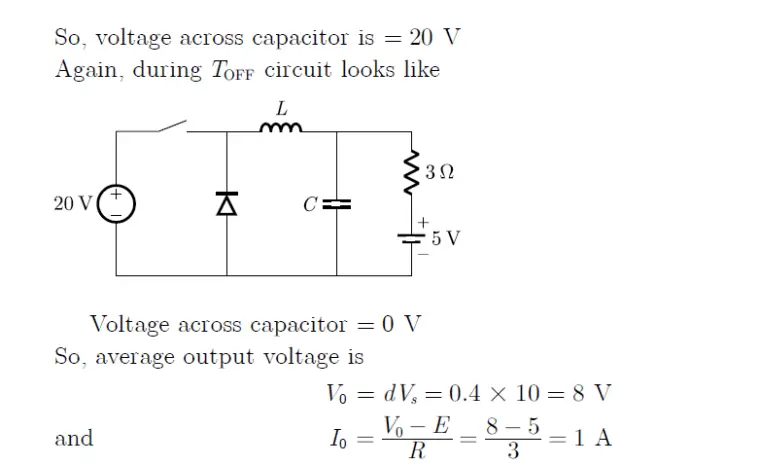

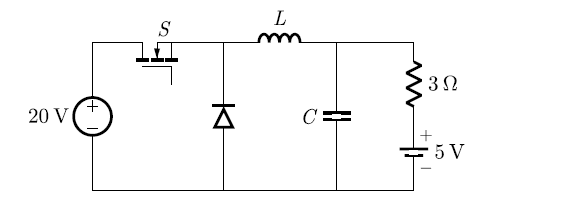

Q. 22 In the following chopper, the duty ratio of switch S is 0.4. If the inductor and
capacitor are sufficiently large to ensure continuous inductor current and ripple
free capacitor voltage, the charging current (in Ampere) of the 5 V battery, under
steady-state, is______
