Gate EE-2015-1 Question Paper With Solutions

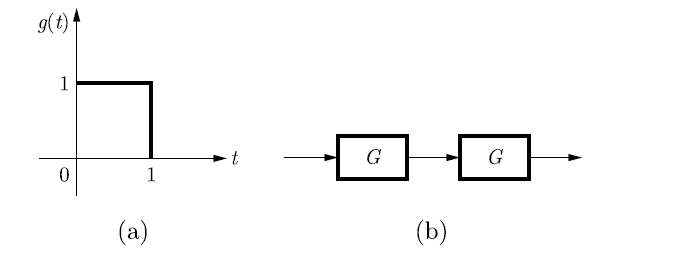

Q.16. Thr impulse response g(t) of a system, G, is as shown in Figure (a). What is the
maximum value attained by the impulse response of two cascaded blocks of G as
shown in Figure (b)?
Answer:(D)

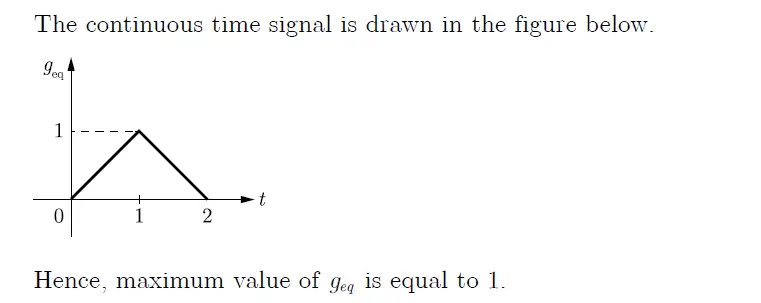

Explanation:
