Gate EE-2014-3 Question Paper With Solutions

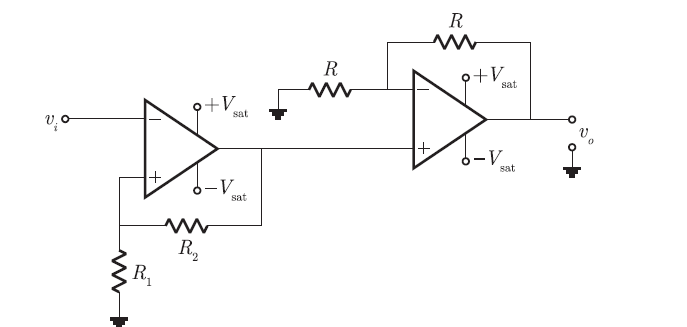

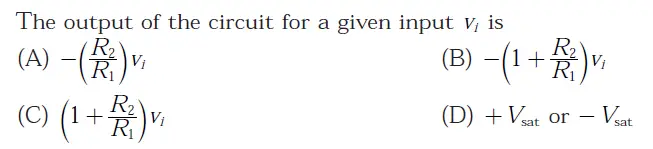

Q. 32 An operational amplifier circuit is shown in the figure.

Gate EE-2014-3 Question Paper With SolutionsGate EE-2014-3 Question Paper With Solutions

Answer:(D)

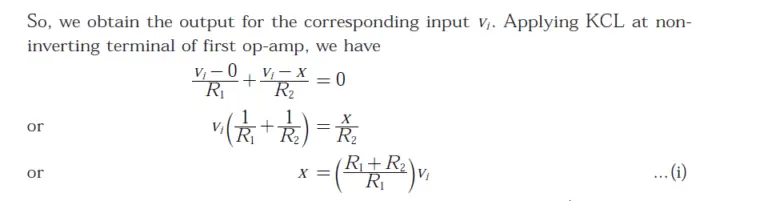

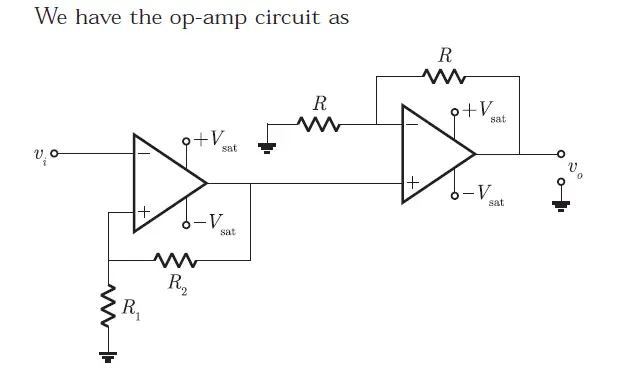

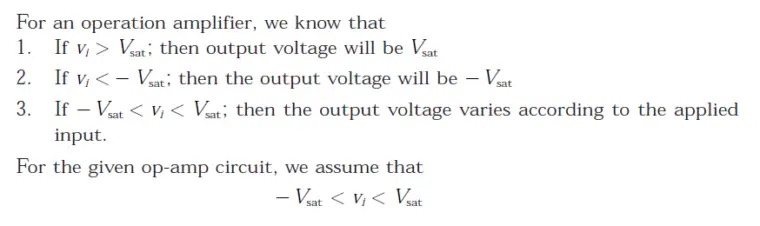

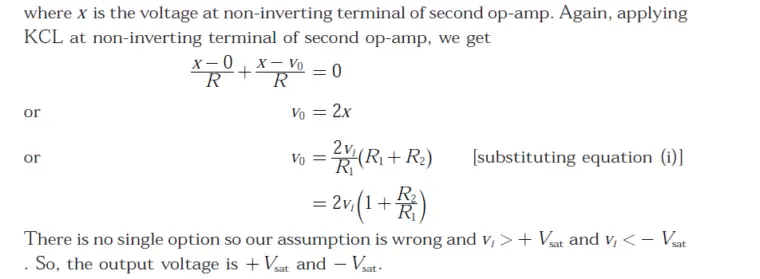

Explanation:

Gate EE-2014-3 Question Paper With Solutions Gate EE-2014-3 Question Paper With Solutions Gate EE-2014-3 Question Paper With Solutions Gate EE-2014-3 Question Paper With Solutions

Learn More:   Gate EE-2015-1 Question Paper With Solutions
