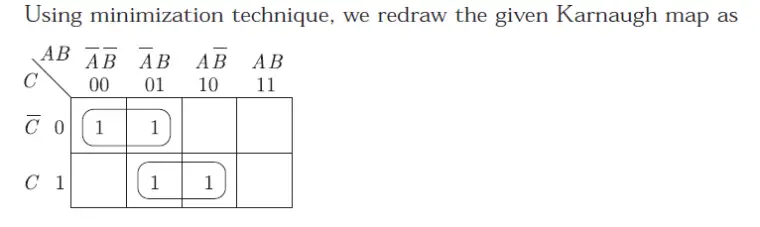

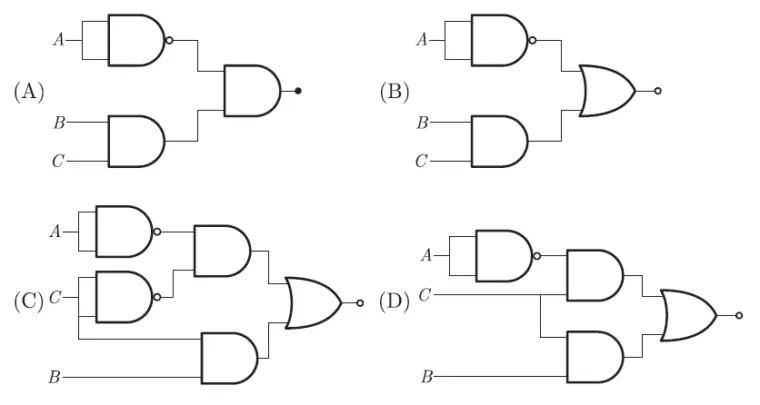

Q. 60 Which of the following logic circuits is a realization of the function F whose
Karnaugh map is shown in figure

Gate EE-2014-1 Question Paper With Solutions Gate EE-2014-1 Question Paper With Solutions

Answer:(C)

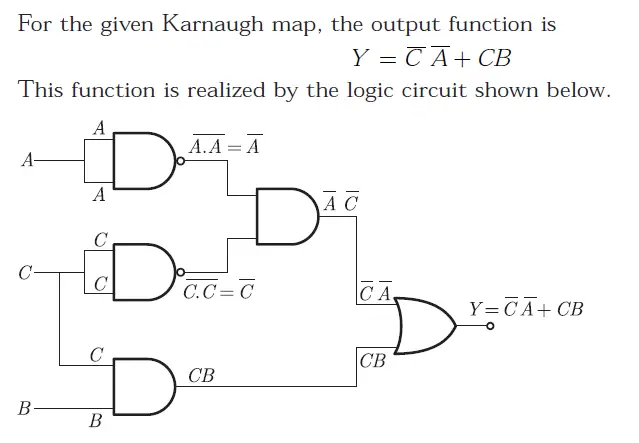

Explanation:

Gate EE-2014-1 Question Paper With SolutionsGate EE-2014-1 Question Paper With Solutions
