Gate EE-2014-1 Question Paper With Solutions

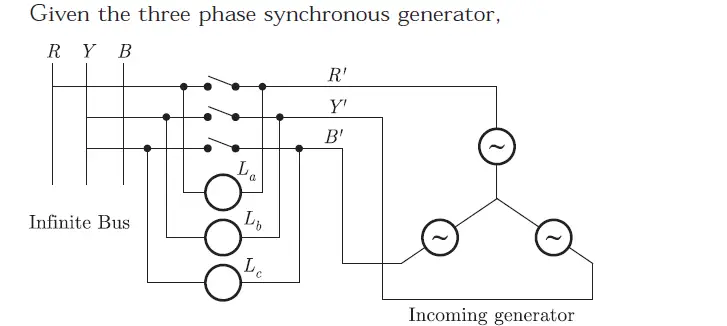

Q. 49 A three phase synchronous generator is to be connected to the infinite bus.
The lamps are connected as shown in the figure for the synchronization. The
phase sequence of bus voltage is R-Y-B and that of incoming generator voltage
is Gate EE-2014-1 Question Paper With Solutions.It was found that the lamps are becoming dark in the sequence Gate EE-2014-1 Question Paper With Solutions. It means that the phase sequence of incoming generator is

Gate EE-2014-1 Question Paper With Solutions

(A) opposite to infinite bus and its frequency is more than infinite bus

(B) opposite to infinite bus but its frequency is less than infinite bus

(C) same as infinite bus and its frequency is more than infinite bus

(D) same as infinite bus and its frequency is less than infinite bus

Answer:(A)

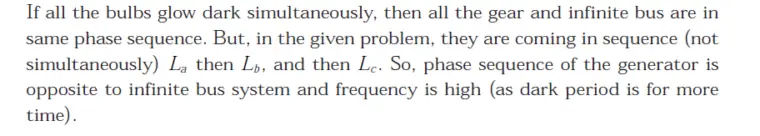

Explanation:

Gate EE-2014-1 Question Paper With SolutionsGate EE-2014-1 Question Paper With Solutions
