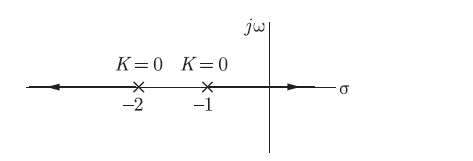

Q. 28 The root locus of a unity feedback system is shown in the figure.

Gate EE-2014-1 Question Paper With Solutions

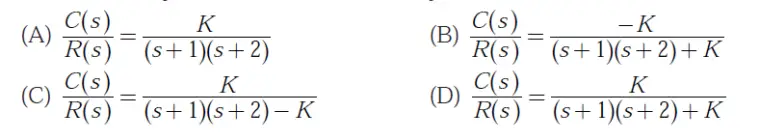

The closed loop transfer function of the system is

Gate EE-2014-1 Question Paper With Solutions

Answer:(C)

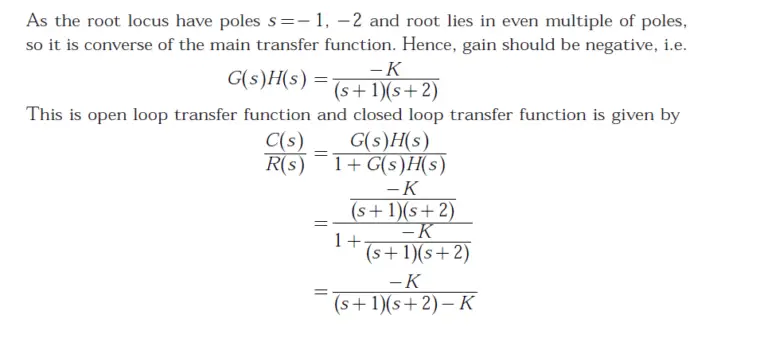

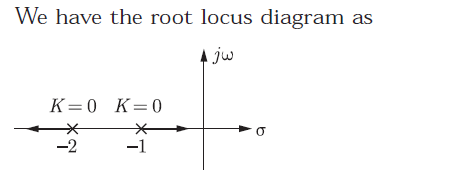

Explanation:

Gate EE-2014-1 Question Paper With SolutionsGate EE-2014-1 Question Paper With Solutions
