Gate EE-2013 Question Paper With Solutions

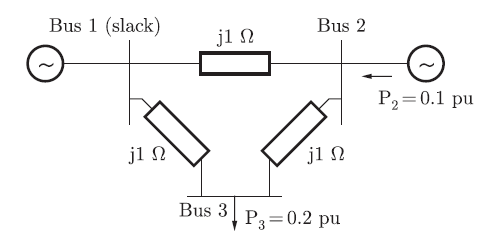

 Q. 52 The voltage phase angles in rad at buses 2 and 3 are In the following network, the voltage magnitudes at all buses are equal to 1 pu, the voltage phase angles are very small, and the line resistances are negligible. All the line reactances are equal to j1W

Gate EE-2013 Question Paper With SolutionsGate EE-2013 Question Paper With Solutions

Answer:(C)

Explanation:

Gate EE-2013 Question Paper With Solutions Gate EE-2013 Question Paper With SolutionsGate EE-2013 Question Paper With Solutions

Learn More:   Gate EE-2018 Question Paper With Solutions
