Q. 51 The average source current in Amps in steady-state is In the figure shown below, the chopper feeds a resistive load from a battery source. MOSFET Q is switched at 250 kHz, with duty ratio of 0.4. All elements of the circuit are assumed to be ideal
(A) 3/2
(B) 5/3l
(C) 5/2
(D) 15/4
Answer:(B)

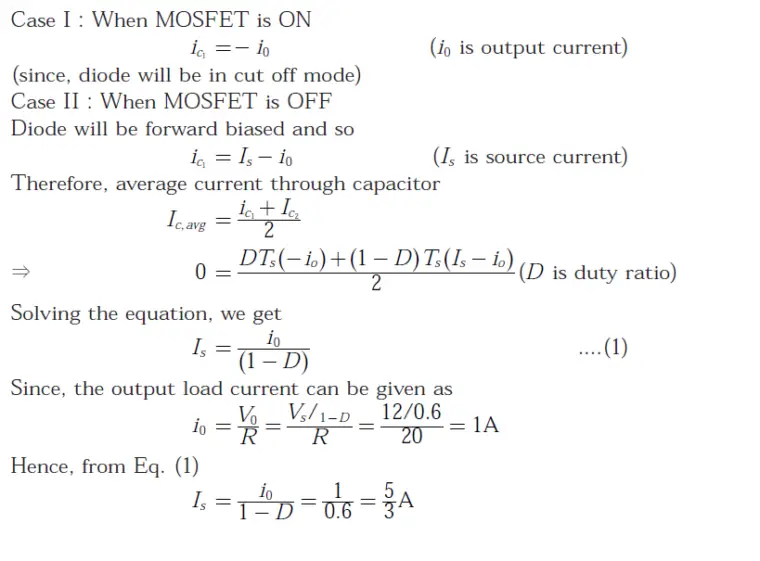

Explanation:
