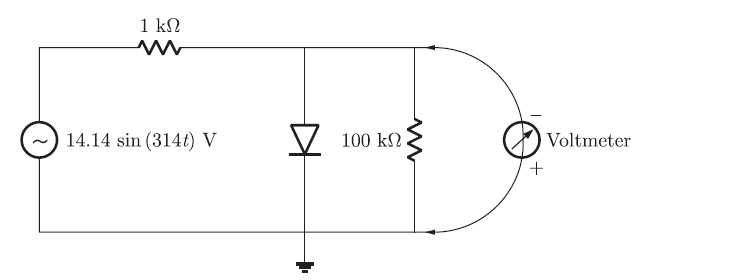

Q. 13 The input impedance of the permanent magnet moving coil (PMMC) voltmeter is infinite. Assuming that the diode shown in the figure below is ideal, the reading of the voltmeter in Volts is
(A) 4.46
(B) 3.15
(C) 2.23
(D) 0
Answer:(A)

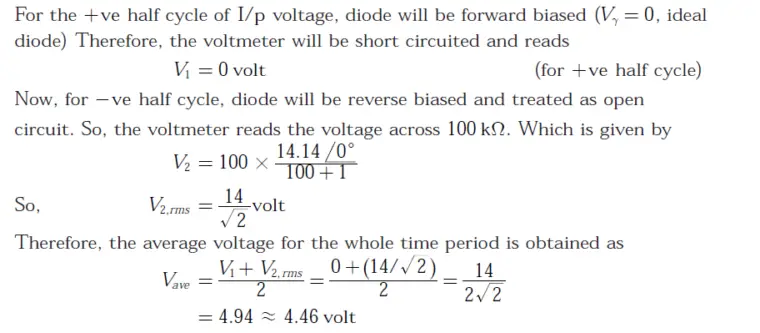

Explanation :
