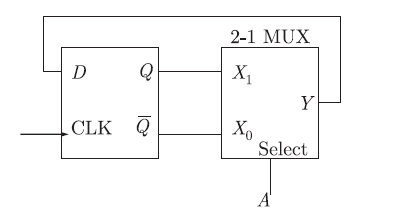

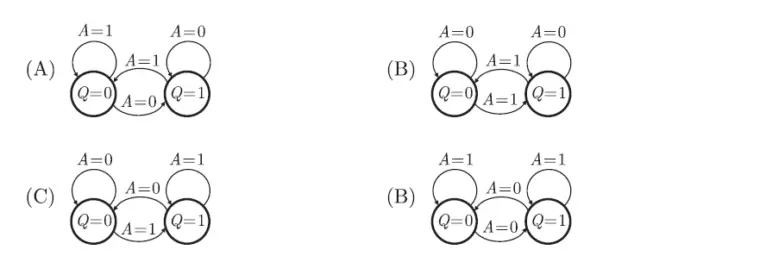

Q. 30 The state transition diagram for the logic circuit shown is

Gate EE-2012 Question Paper With Solutions Gate EE-2012 Question Paper With Solutions

Answer:(D)

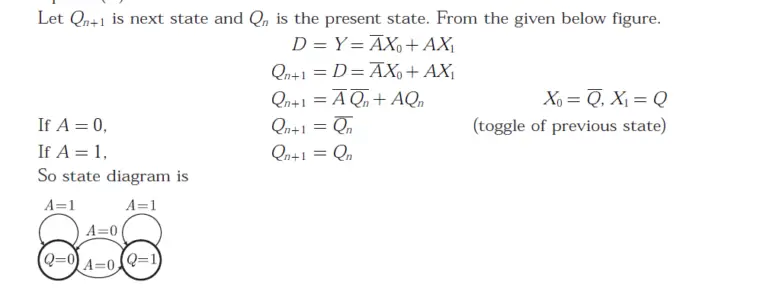

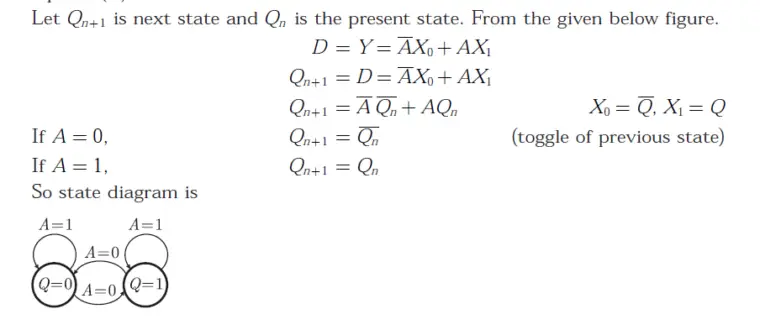

Explanation:

Gate EE-2012 Question Paper With Solutions Gate EE-2012 Question Paper With Solutions
