Gate EE-2012 Question Paper With Solutions

Q. 18 The i -v characteristics of the diode in the circuit given below are

The current in the circuit is
(A) 10 mA

(B) 9.3 mA

(C) 6.67 mA

(D) 6.2 mA

Answer:(D)

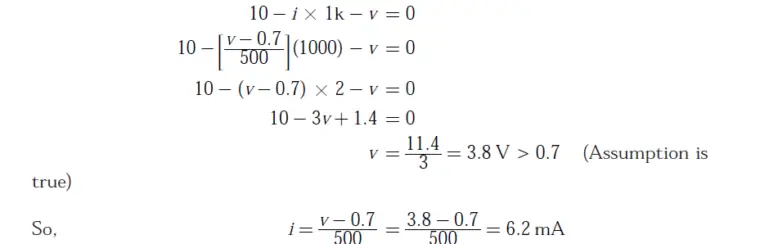

Explanation:
