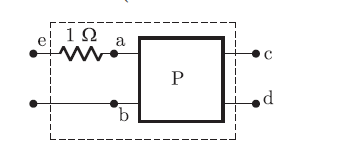

Q. 34 The two-port network P shown in the figure has ports 1 and 2, denoted by
terminals (a,b) and (c,d) respectively. It has an impedance matrix Z with
parameters denoted by Zij . A
resistor is connected in series with the network
at port 1 as shown in the figure. The impedance matrix of the modified two-port
network (shown as a dashed box ) is
Answer:(C)

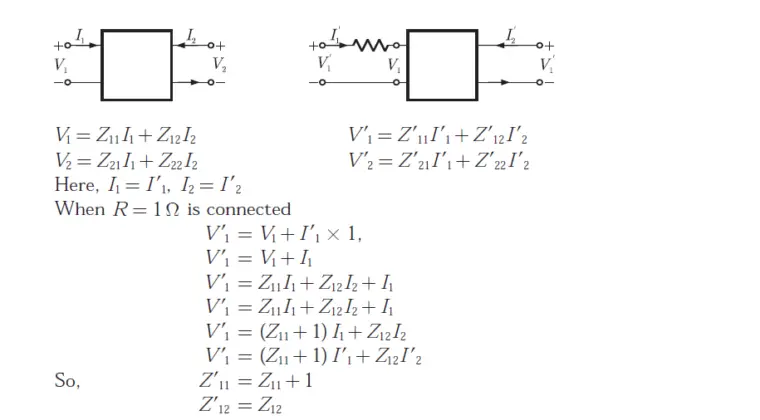

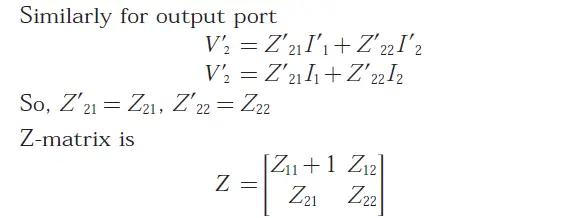

Explanation:
