Q. 24 Figure shows a composite switch consisting of a power transistor (BJT) in series
with a diode. Assuming that the transistor switch and the diode are ideal, the
I -V characteristic of the composite switch is
Answer:(C)

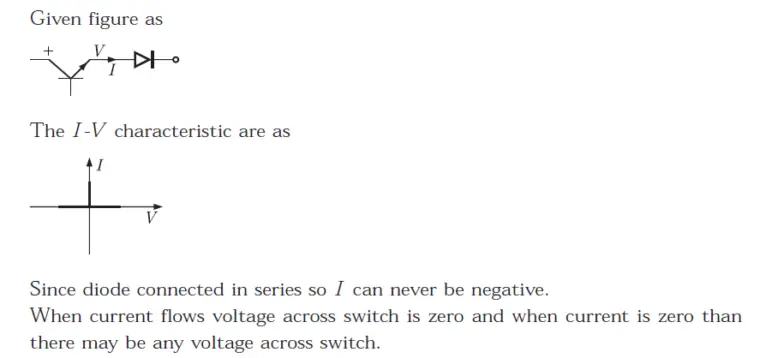

Explanation:
Q. 24 Figure shows a composite switch consisting of a power transistor (BJT) in series
with a diode. Assuming that the transistor switch and the diode are ideal, the
I -V characteristic of the composite switch is
Answer:(C)
Explanation:
