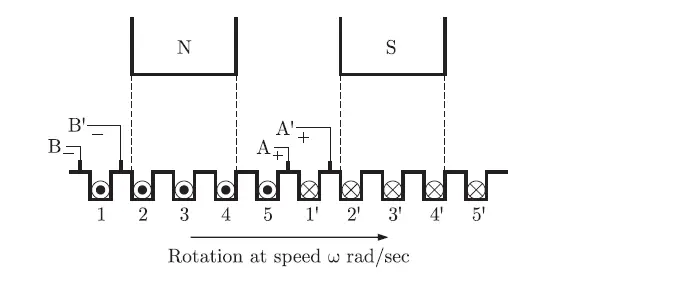

Q. 50 Figure shows the extended view of a 2-pole dc machine with 10 armature conductors.Normal brush positions are shown by A and B, placed at the interpolar axis. If the brushes are now shifted, in the direction of rotation, to A’ and B’ as shown, the voltage waveform

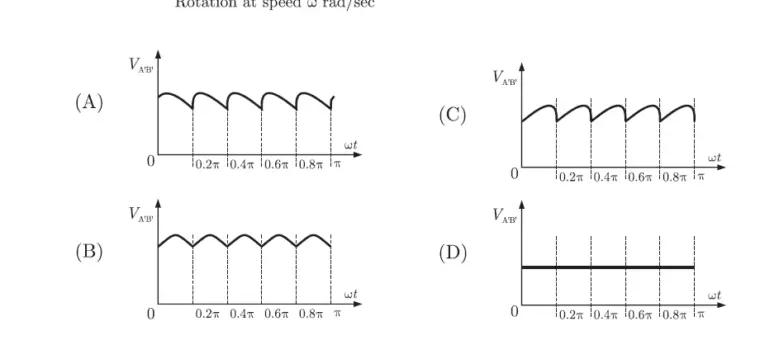

will resemble

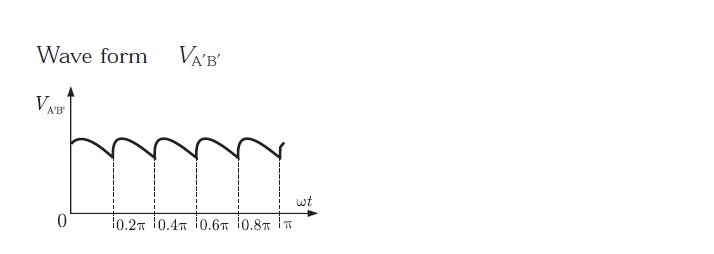

Answer:(A)
Explanation:
