Gate EE-2009 Question Paper With Solutions

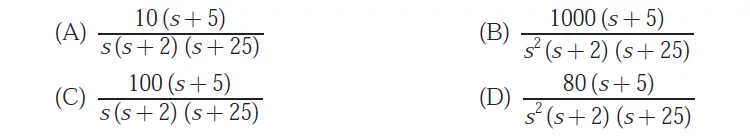

Q. 19 The asymptotic approximation of the log-magnitude v/s frequency plot of a system containing only real poles and zeros is shown. Its transfer function is

Answer:(B)

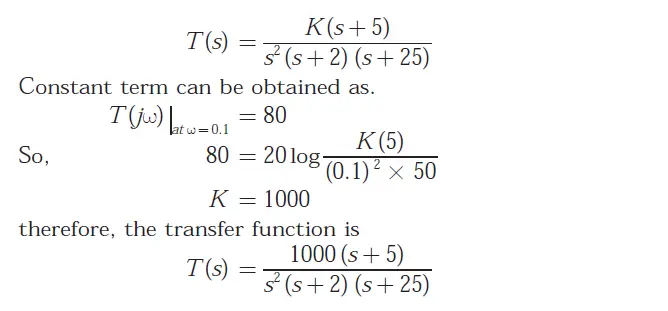

Explanation:
