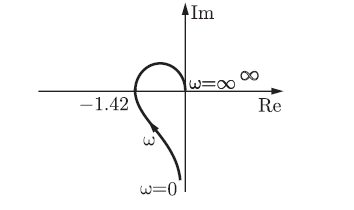

Q. 17 The polar plot of an open loop stable system is shown below. The closed loop system is
(A) always stable
(B) marginally stable
(C) un-stable with one pole on the RHs-plane
(D) un-stable with two poles on the RHs-plan
Answer:(D)

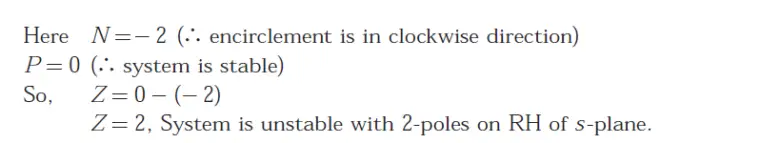

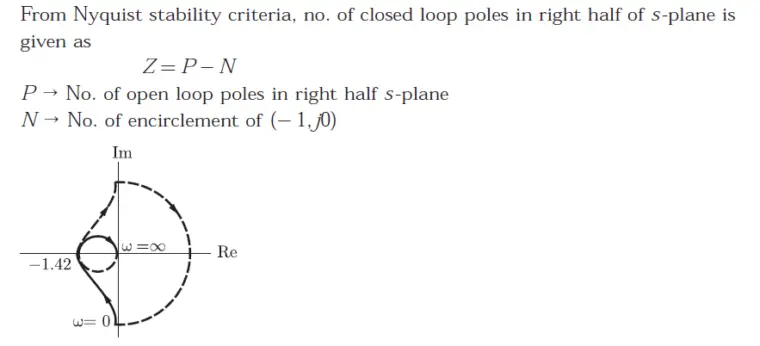

Explanation:
