Q. 77 The capacitor charged upto 5 ms, as per the current profile given in the figure,is connected across an inductor of 0.6 mH. Then the value of voltage across the capacitor afterGate EE-2008 Question Paper With Solutions will approximately be

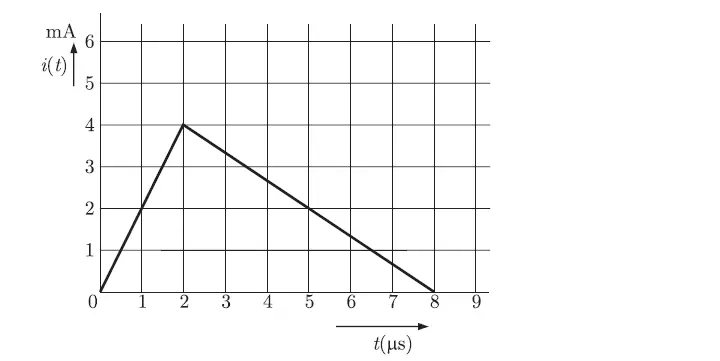

The current i(t)sketched in the figure flows through a initially uncharged 0.3 nF capacitor

Gate EE-2008 Question Paper With Solutions
(A) 18.8 V
(B) 23.5 V
(C)-23.5 V
(D)-30.6V



Answer:(D)

Explanation:

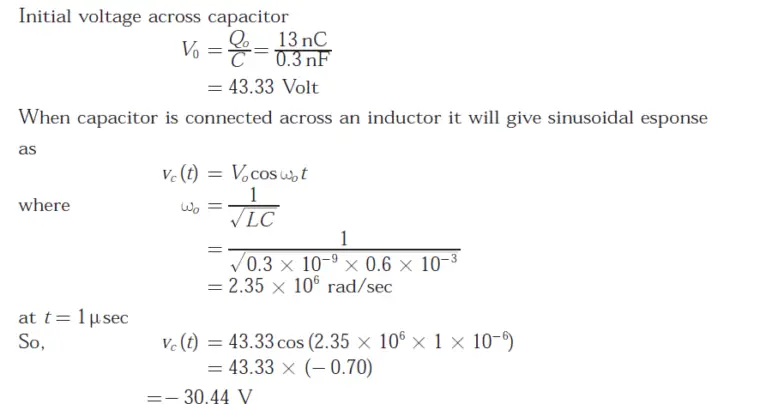

Gate EE-2008 Question Paper With SolutionsGate EE-2008 Question Paper With Solutions
