Gate EE-2008 Question Paper With Solutions

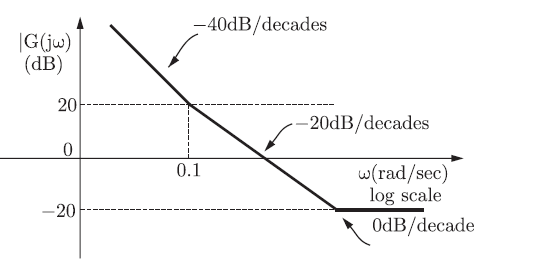

Q. 66 The asymptotic Bode magnitude plot of a minimum phase transfer function is shown in the figure :

Gate EE-2008 Question Paper With Solutions

This transfer function has

(A) Three poles and one zero

(B) Two poles and one zero

(C) Two poles and two zero

(D) One pole and two zeros

Answer:(C)

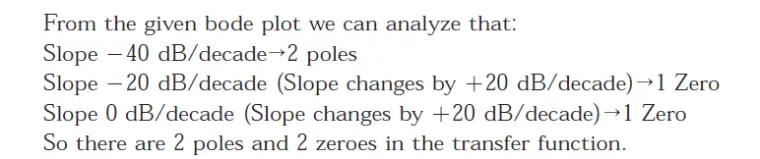

Explanation:

Gate EE-2008 Question Paper With Solutions
