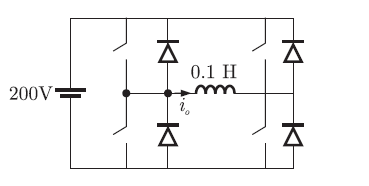

Q. 59 A single phase source inverter is feeding a purely inductive load as shown in the figure The inverter is operated at 50 Hz in Gate EE-2008 Question Paper With Solutions squarewave mode. Assume that the load current does not have any dc component. The peak value of the inductor current Gate EE-2008 Question Paper With Solutionswill be

Gate EE-2008 Question Paper With Solutions

(A) 6.37 A
(B) 10 A
(C) 20 A
(D) 40 A



Answer:(C)

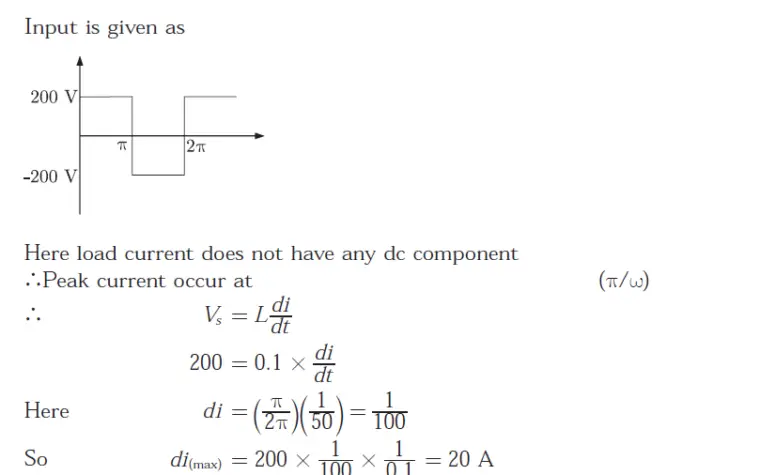

Explanation:

Gate EE-2008 Question Paper With Solutions
