Q. 56 A single-phase half controlled converter shown in the figure feeding power to highly inductive load. The converter is operating at a firing angle of

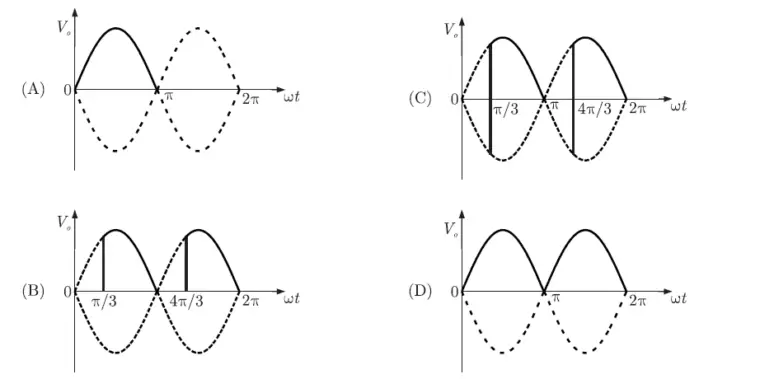

If the firing pulses are suddenly removed, the steady state voltage waveform
of the converter will become
.
Answer:(A)

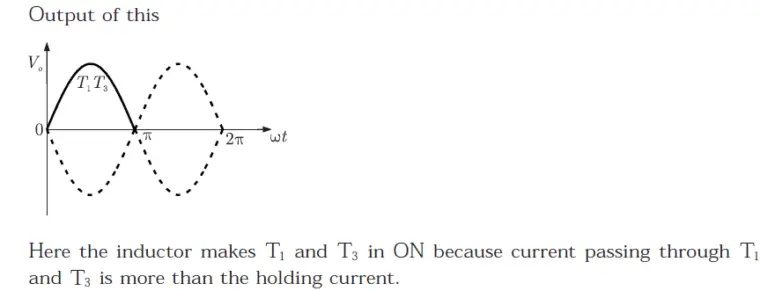

Explanation:
