Gate EE-2008 Question Paper With Solutions

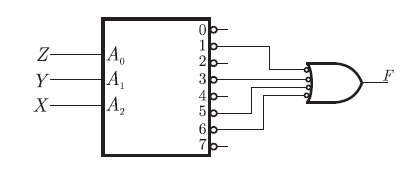

Q. 43 A 3-line to 8-line decoder, with active low outputs, is used to implement a 3-variable Boolean function as shown in the figureGate EE-2008 Question Paper With Solutions

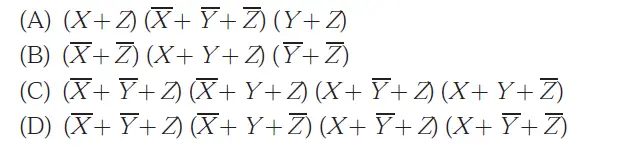

The simplified form of Boolean function F(A ,B,C) implemented in ‘Product of
Sum’ form will be

Gate EE-2008 Question Paper With Solutions

Answer:(B)

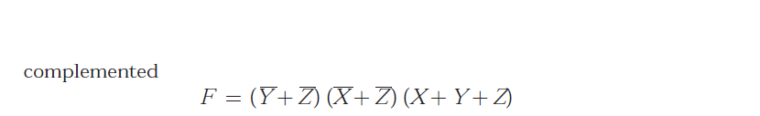

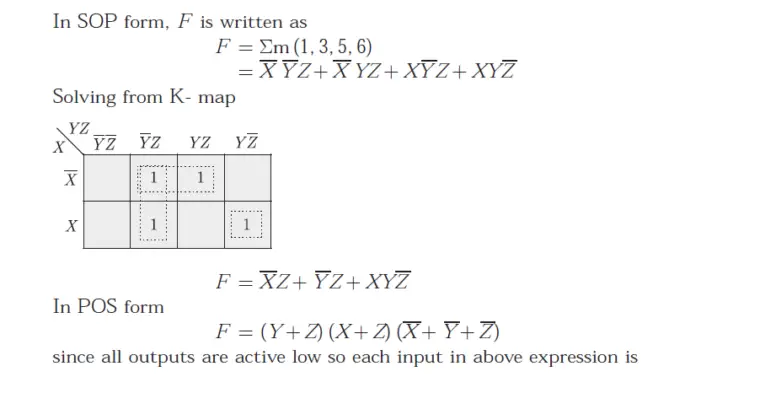

Explanation:

Gate EE-2008 Question Paper With SolutionsGate EE-2008 Question Paper With Solutions

Learn More:   Gate EE-2004 Question Paper With Solutions
