Gate EE-2008 Question Paper With Solutions

Q. 24 A capacitor consists of two metal plates eachGate EE-2008 Question Paper With Solutions and spaced 6 mm apart. The space between the metal plates is filled with a glass plate of 4 mm thickness and a layer of paper of 2 mm thickness. The relative primitivities of the glass and paper are 8 and 2 respectively. Neglecting the fringing effect, the capacitance will be (Given thatGate EE-2008 Question Paper With Solutions

(A) 983.3 pF
(B) 1475 pF
(C) 637.7 pF
(D) 9956.25 pF



Answer:(B)

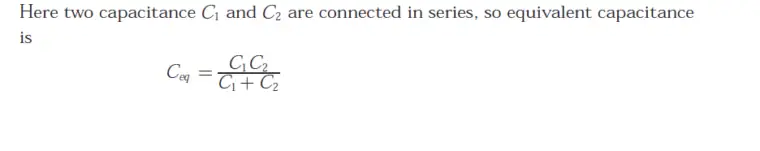

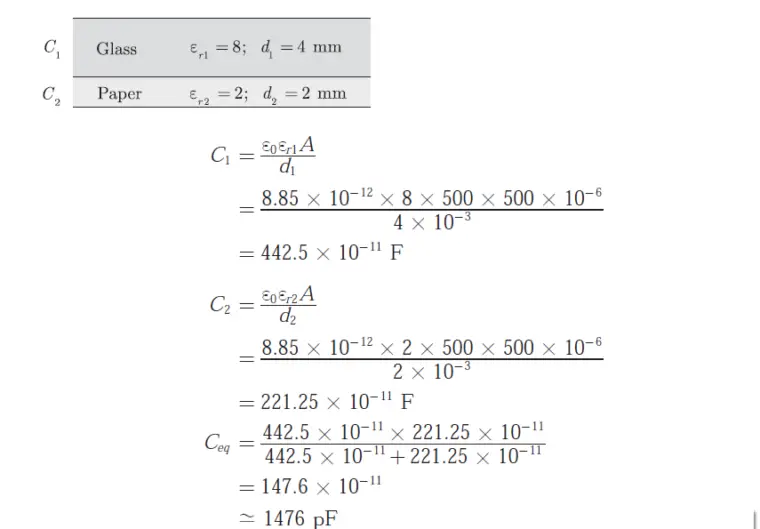

Explanation:

Gate EE-2008 Question Paper With SolutionsGate EE-2008 Question Paper With Solutions
