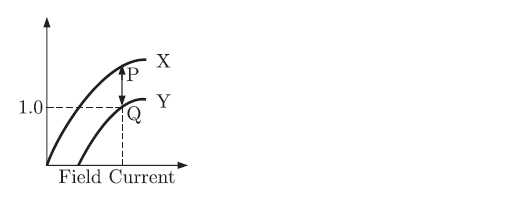

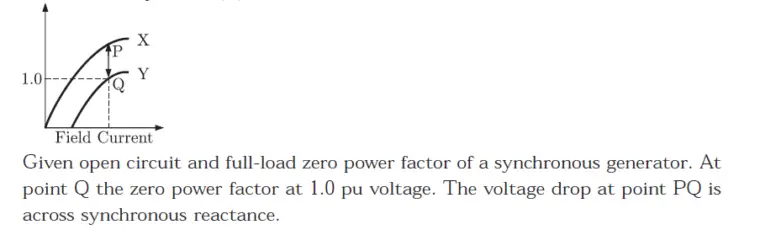

Q. 9 Curves X and Y in figure denote open circuit and full-load zero power
factor(zpf) characteristics of a synchronous generator. Q is a point on the zpf
characteristics at 1.0 p.u. voltage. The vertical distance PQ in figure gives the
voltage drop across
(A) Synchronous reactance
(B) Magnetizing reactance
(C) Potier reactance
(D) Leakage reactance
Answer: (A)
Explanation:
