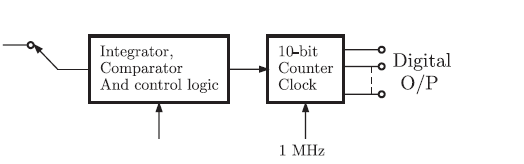

Q. 65 The simplified block diagram of a 10-bit A/D converter of dual slope integrator
type is shown in figure. The 10-bit counter at the output is clocked by a 1 MHz
clock. Assuming negligible timing overhead for the control logic, the maximum
frequency of the analog signal that can be converted using this A/D converter is
approximately
(A) 2 kHz
(B) 1 kHz
(C) 500 Hz
(D) 250 Hz
Answer:(B)

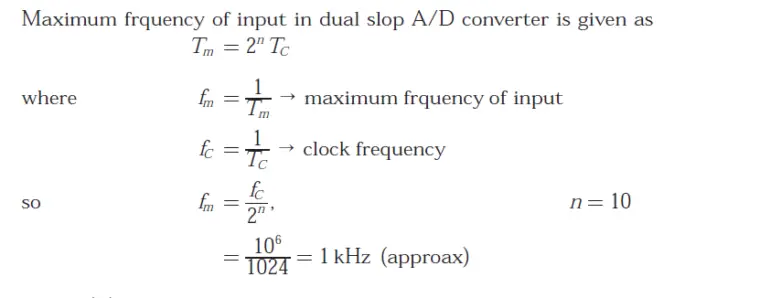

Explanation:
