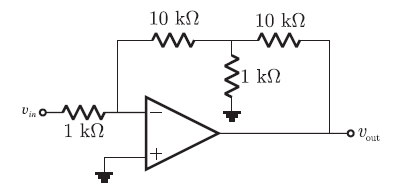

Q. 62 Assuming the operational amplifier to be ideal, the gain
for the circuit shown in figure is
(A) -1
(B) -20
(C) -100
(D) -120
Answer:(D)

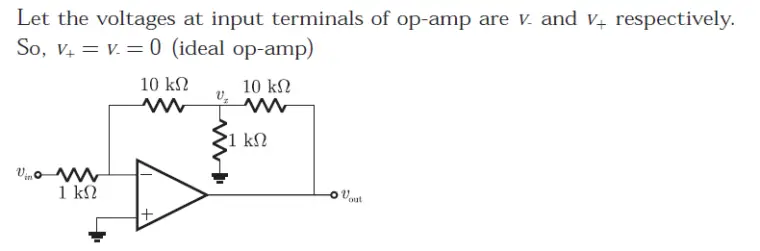

Explanation:

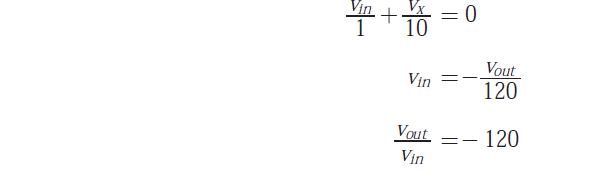

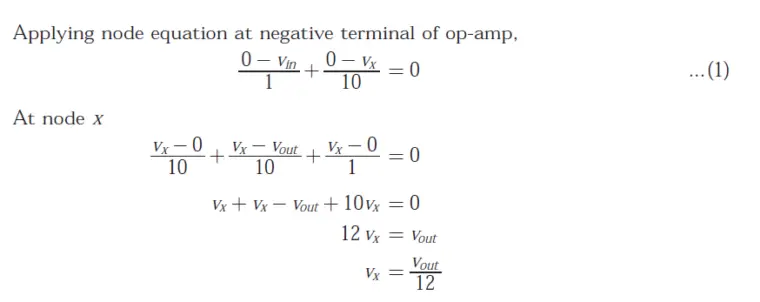

From equation (1)
Q. 62 Assuming the operational amplifier to be ideal, the gain for the circuit shown in figure is
(A) -1
(B) -20
(C) -100
(D) -120
Answer:(D)
Explanation:
From equation (1)
