Q. 54 A 3-phase 11 kV generator feeds power to a constant power unity power factor
load of 100 MW through a 3-phase transmission line. The line-to line voltage
at the terminals of the machine is maintained constant at 11 kV. The per unit
positive sequence impedance of the line based on 100 MVA and 11 kV is j0.2.
The line to line voltage at the load terminals is measured to be less than 11 kV.
(A) 100 MVAR
(B) 10.1 MVAR
(C) -100 MVAR
(D) -10.1 MVAR
Answer:(D)

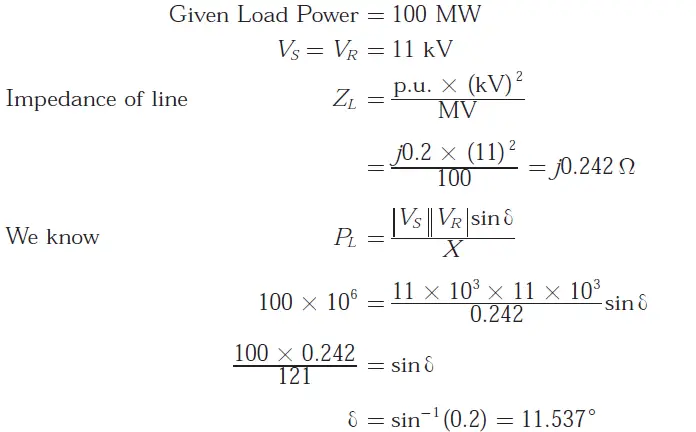

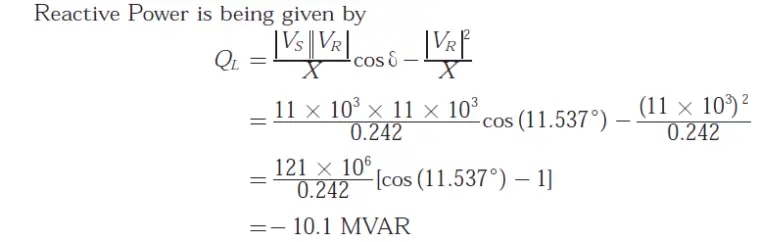

Explanation:
