Gate EE-2003 Question Paper With Solutions

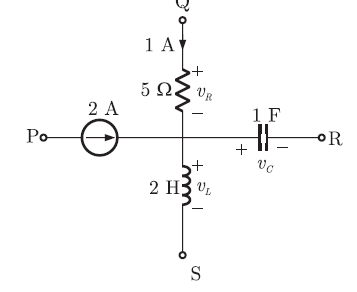

Q. 2 A segment of a circuit is shown in figure vR = 5V, vc = 4 sin2t .The voltage vL is
given by

(A) 3 – 8 cos 2t

(B) 32 sin2t

(C) 16 sin2t

(D) 16 cos 2t

Answer: (B)

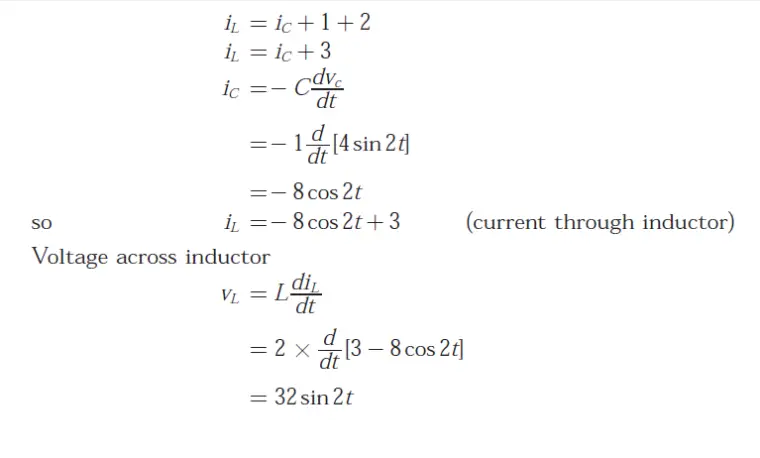

Explanation:
