Gate EC-2016 – 3 Question Paper With Solutions

Q.58 The forward-path transfer function and the feedbackpath transfer function of a single loop negative feedback control system are given as Gate EC-2016 - 3 Question Paper With Solutions and H(s) = 1 respectively. If the variable parameter K is real positive, then the location of the breakaway point on the root locus diagram of the system is ______

Answer: (-3.41)

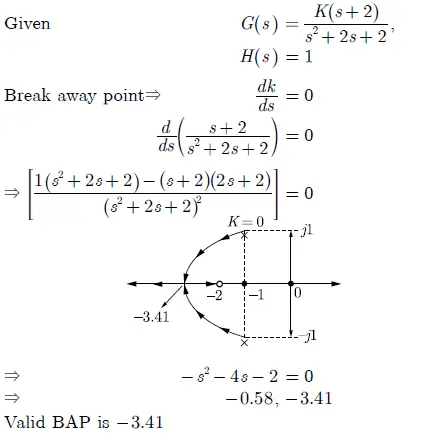

Explanation:
Gate EC-2016 - 3 Question Paper With Solutions
