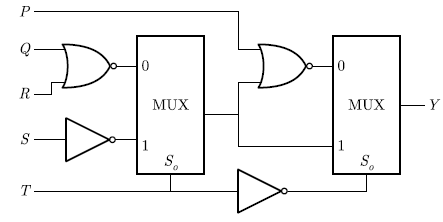

Q.54 For the circuit shown in the figure, the delays of NOR gates, multiplexers and inverters are 2 ns, 1.5 ns and 1 ns, respectively. If all the inputs P,Q,R,S and T are applied at the same time instant, the maximum propagation delay (in ns) of the circuit is ______
Answer: (6)

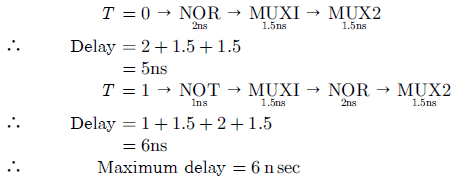

Explanation:
