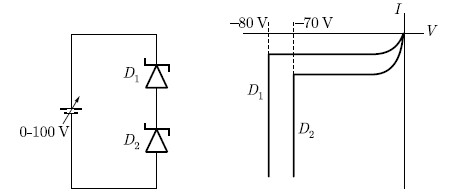

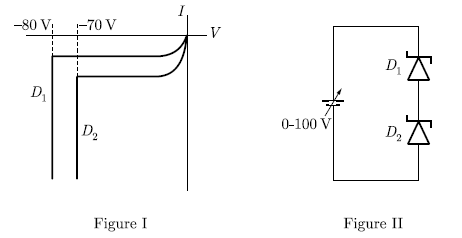

Q49 The I – V characteristics of the zener diodes D1 and D2 are shown in Figure I. These diodes are used in the circuit given in Figure II. If the supply voltage is varied from 0 to 100 V. then breakdown occurs in
(A) D1 only
(B) D2 only
(C) Both D1 & D2
(D) None of D1 & D2
Answer: (A)

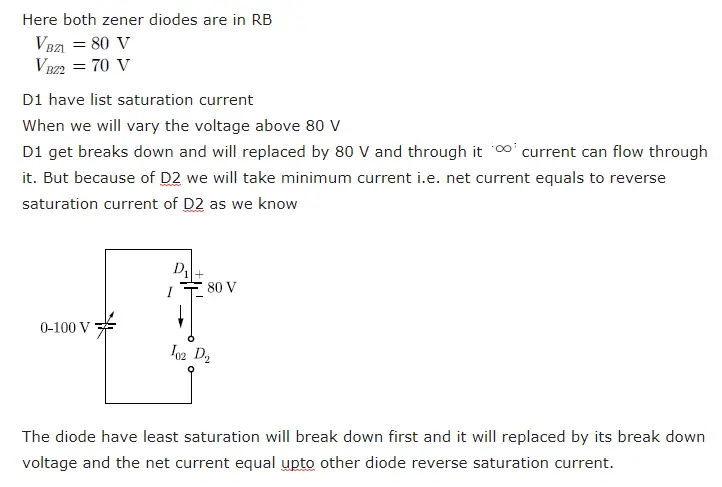

Explanation:
