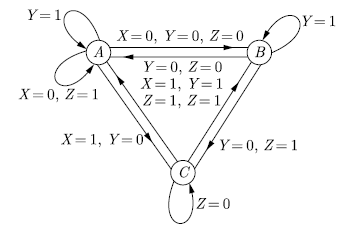

Q.54 The state transition diagram for a finite state machine with states A,B and C , and binary inputs X,Y and Z is shown in the figure.
Which one of the following statements is correct?
(A) Transitions from State A are ambiguously defined.
(B) Transition from State B are ambiguously defined.
(C) Transitions from State C are ambiguously defined.
(D) All of the state transitions are defined unambiguously
Answer:(C)
Explanation:
