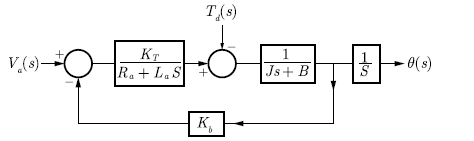

Q. 56 The position control of a DC servo-motor is given in the figure. The values of the parameters are
N-m(rad/sed) and
. The steady-state position response (in radians) due to unit impulse disturbance torque
is_______.
Answer: (0.5)

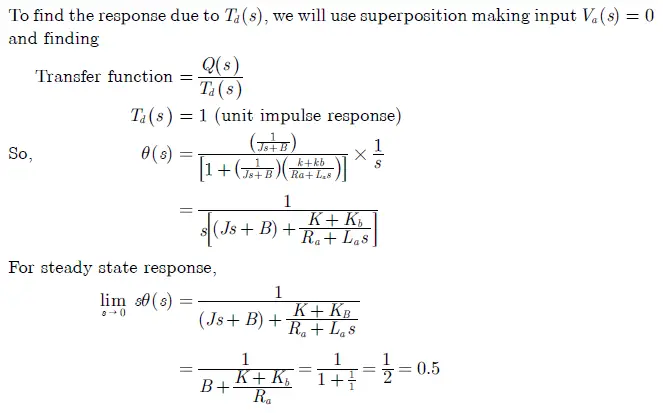

Explanation:
Q. 56 The position control of a DC servo-motor is given in the figure. The values of the parameters are N-m(rad/sed) and. The steady-state position response (in radians) due to unit impulse disturbance torqueis_______.
Answer: (0.5)
Explanation:
